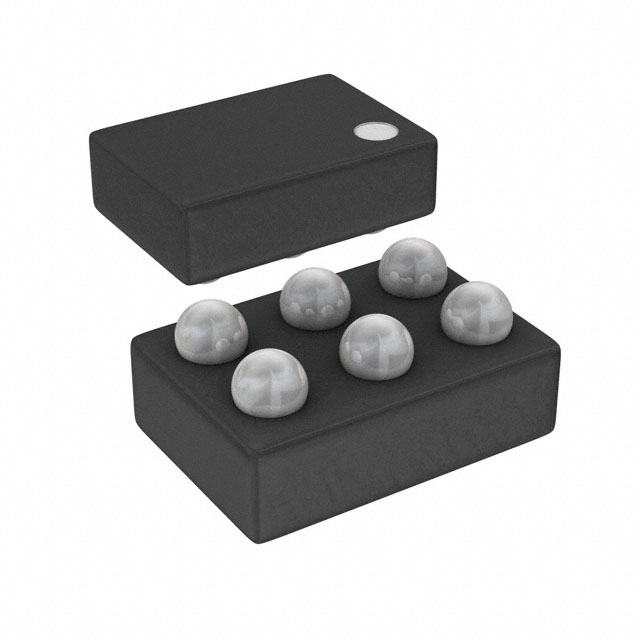

The ADL5504ACBZ-P7 from Analog Devices is a TruPwr™ mean-responding (true rms) power detector designed for high-frequency receiver and transmitter signal chains. It operates across a wide RF bandwidth from 450 MHz to 6000 MHz.
This detector offers excellent temperature stability with ±0.25 dB rms detection accuracy. It provides over 35 dB of input power dynamic range and requires a single supply voltage between 2.5 V and 3.3 V, drawing a low current of 1.8 mA. The input impedance is 500 Ω.
The ADL5504ACBZ-P7 is suitable for power measurements of complex modulation waveforms such as W-CDMA, CDMA2000, and OFDM-based signals like LTE and WiMAX. It is available in a 6-WLCSP (0.91x1.39) surface mount package.
Applications include RF transmitter or receiver power measurement for various wireless communication standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5 V to 3.3 V.
The RF detector operates from 450 MHz to 6 GHz.
The detection accuracy is ±0.25 dB.
The input power dynamic range is over 35 dB.
It is supplied in a 6-WLCSP (0.91x1.39) package.
