The ADL5502ACBZ-P7 is a true RMS power detector combined with an envelope detector, designed for accurate crest factor measurement of modulated signals. It operates across a wide RF bandwidth from 450 MHz to 6 GHz, with envelope bandwidths exceeding 10 MHz.
This detector offers excellent temperature stability with ±0.25 dB accuracy for both RMS and envelope detection over the top 25 dB of its input range. It provides over 35 dB of input power dynamic range. The device requires a single supply voltage between 2.5 V and 3.3 V and consumes low power, drawing only 3 mA at a 3 V supply.
Applications include power and envelope measurement for complex modulation waveforms such as W-CDMA, CDMA2000, and QPSK-/QAM-based OFDM. It is particularly useful for measuring high crest factor signals in RF transmitter or receiver chains.

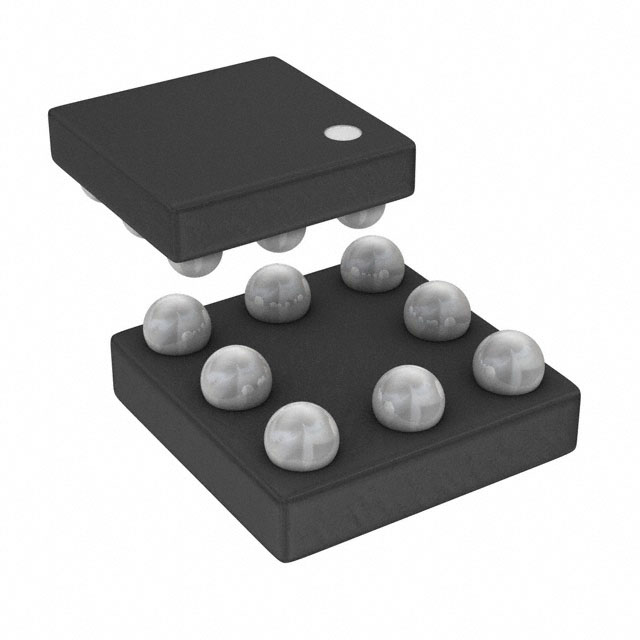

The ADL5502ACBZ-P7 is supplied in an 8-ball, 1.5 mm × 1.5 mm wafer-level chip scale package (WLCSP) and is designed for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADL5502ACBZ-P7 operates from 2.5 V to 3.3 V.
The RF detector operates from 450 MHz to 6 GHz.
The detection accuracy is ±0.25 dB for both RMS and envelope detection versus temperature.
The ADL5502ACBZ-P7 is supplied in an 8-WLCSP (Wafer Level Chip Scale Package).
