The ADL5500ACBZ-P7 is a TruPwr detector designed for high-frequency receiver and transmitter signal chains, covering the range of 100 MHz to 6 GHz. It operates on a single supply voltage between 2.7 V and 5.5 V and consumes low power, typically 3 mW at a 3 V supply.
Key features include true RMS response, excellent temperature stability with ±0.1 dB accuracy over an 8 dB input range, and up to 30 dB input dynamic range at 3.9 GHz. The device has a nominal input impedance of 50 Ω and a maximum input of +15 dBm. It is suitable for measuring complex modulation waveforms like CDMA2000, W-CDMA, and QPSK/QAM-based OFDM signals.

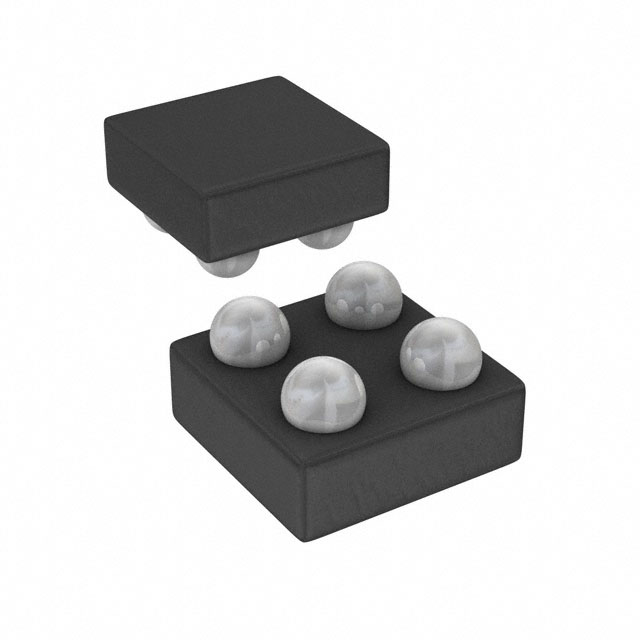

The ADL5500ACBZ-P7 is available in a compact 4-WLCSP (0.96x0.96) package, designed for surface mount applications. Its operating temperature range is -40°C to +85°C, making it suitable for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADL5500ACBZ-P7 operates from 100 MHz to 6 GHz.
The input power range is -18.5 dBm to 6 dBm.
The accuracy is ±0.1 dB over the top 8 dB of the input range.
The operating voltage is between 2.7 V and 5.5 V.
The operating temperature range is -40°C to +85°C.
It is supplied in a 4-WLCSP (0.96x0.96) package for surface mounting.
