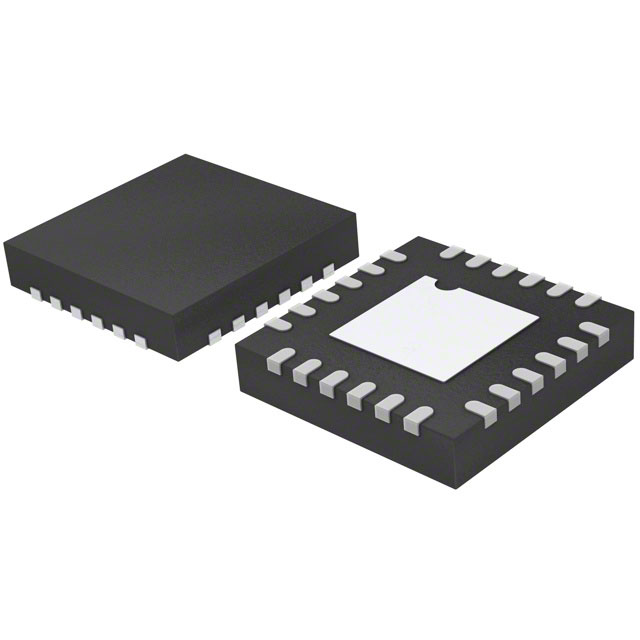

ADL5372ACPZ-WP The ADL5372ACPZ-WP is a quadrature modulator from Analog Devices, Inc. It operates within a frequency range of 1.5GHz to 2.5GHz and features a surface mount package.
Mfr Part #:

ADL5372ACPZ-WP

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADL5372ACPZ-WP is a quadrature modulator from Analog Devices, Inc. It operates within a frequency range of 1.5GHz to 2.5GHz and features a surface mount package.
✓ Total Stock: 261 pcs
$ Price Range: $0.99

ADL5372ACPZ-WP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
261 pcs
On Request
261 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADL5372ACPZ-WP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
LO Frequency
Mounting Type
Noise Floor
Output Power
P1dB
RF Frequency
Storage Temperature
Supplier Device Package
Tape & Reel
Test Frequency
Voltage
View Similar Products (0)

ADL5372ACPZ-WP Description

Short technical summary and product information.

The ADL5372ACPZ-WP is a quadrature modulator manufactured by Analog Devices, Inc. This component is designed for RF applications, operating within a frequency range of 1.5GHz to 2.5GHz. It requires an operating voltage between 4.75V and 5.25V, drawing a current of 165mA. The modulator has a P1dB of 12.4dBm and an output power of 7.2dBm, with a noise floor of -158.5dBm/Hz. It is supplied in a 24-WFQFN Exposed Pad, CSP package, suitable for surface mounting. The supplier device package is specified as 24-LFCSP-WQ (4x4).



This device functions as a modulator and is tested at a frequency of 1.9GHz. Its RoHS status is compliant with RoHS3, and it has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. The REACH status is unaffected. The ADL5372ACPZ-WP is designed for integration into various RF circuits where precise modulation is required.

ADL5372ACPZ-WP Quick Information

Product Type: RF Modulator
Canonical Name: ADL5372ACPZ-WP Quadrature Modulator
Subcategory: Quadrature Modulator

ADL5372ACPZ-WP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADL5372ACPZ-WP Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADL5372ACPZ-WP Features

  • Quadrature modulator for RF applications.
  • Operates from 1.5GHz to 2.5GHz frequency range.
  • Requires 4.75V to 5.25V operating voltage.
  • Surface mountable in a 24-WFQFN package.
  • RoHS3 compliant with MSL 1 rating.

ADL5372ACPZ-WP Applications

  • Suitable for RF signal modulation.
  • Used in communication systems.
  • Integration into wireless devices.
  • Applications requiring precise modulation.

ADL5372ACPZ-WP FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ADL5372ACPZ-WP?

The operating voltage for the ADL5372ACPZ-WP is between 4.75V and 5.25V.

What is the frequency range of the ADL5372ACPZ-WP?

The ADL5372ACPZ-WP operates within a frequency range of 1.5GHz to 2.5GHz for both LO and RF frequencies.

What package type is the ADL5372ACPZ-WP supplied in?

The ADL5372ACPZ-WP is supplied in a 24-WFQFN Exposed Pad, CSP package, specifically a 24-LFCSP-WQ (4x4) for the supplier device package.

How is the ADL5372ACPZ-WP mounted?

The ADL5372ACPZ-WP is designed for surface mount installation.

What is the P1dB of the ADL5372ACPZ-WP?

The P1dB of the ADL5372ACPZ-WP is 12.4dBm.

What is the noise floor of the ADL5372ACPZ-WP?

The noise floor of the ADL5372ACPZ-WP is -158.5dBm/Hz.
