The ADL5363ACPZ-R7 from Analog Devices is a highly linear, doubly balanced passive mixer designed for RF applications. It operates over a frequency range of 2300 MHz to 2900 MHz, with an IF frequency range from DC to 450 MHz. This mixer features a typical power conversion loss of 7.7 dB and a SSB noise figure of 7.6 dB.
With an input IP3 of 31 dBm and a typical LO drive of 0 dBm, the ADL5363ACPZ-R7 offers excellent intermodulation performance and high input linearity, making it suitable for demanding cellular base station receivers and radio link downconverters. It supports single-supply operation from 3.3 V to 5 V and has a typical current consumption of 100 mA.

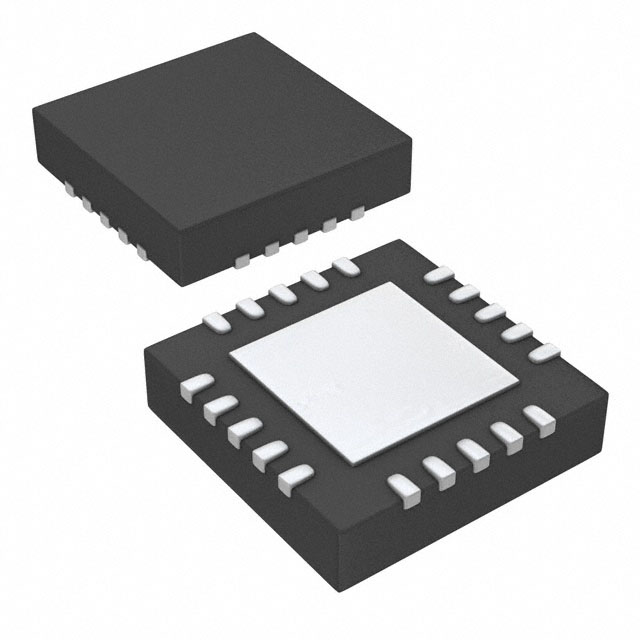

The device is housed in a 20-lead LFCSP package with an exposed pad, measuring 5 mm x 5 mm. It is designed for surface mount applications and offers robust ESD performance with 1500 V HBM and 1250 V FICDM ratings. The integrated RF balun allows for single-ended operation, simplifying circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RF frequency range is 2300 MHz to 2900 MHz.
The typical power conversion loss is 7.7 dB.
The SSB noise figure is 7.6 dB.
The input IP3 is 31 dBm.
The device operates on a single supply voltage from 3.3 V to 5 V.
It is supplied in a 20-lead LFCSP package.
