| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

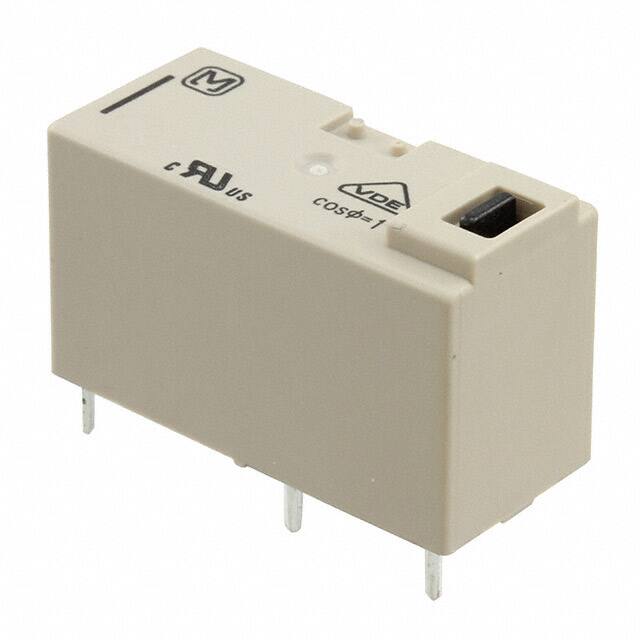

The Panasonic ADJ11112 is a general purpose power relay from the DJ Relays series. It is designed for applications requiring a robust switching solution with a 16A contact rating and a 250VAC maximum switching voltage.
This relay operates on a 12VDC coil voltage with a coil current of 12.5 mA. It features a SPDT (1 Form C) contact form with Silver Tin Oxide (AgSnO) contact material, ensuring reliable performance. The minimum must operate voltage is 8.4 VDC.
Designed for Through Hole mounting with a PC Pin termination style, the ADJ11112 has an operate and release time of 20 ms. It is sealed for flux protection and operates within a temperature range of -40°C to 70°C. The product is RoHS3 Compliant and has an MSL of 1.
This relay is suitable for various industrial and automotive applications where dependable power switching is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the ADJ11112 relay is 12VDC.
The ADJ11112 relay contacts have a current rating of 16A.
The operating temperature range for the ADJ11112 relay is -40°C to 70°C.
The ADJ11112 relay is mounted using the Through Hole method.
