| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package |

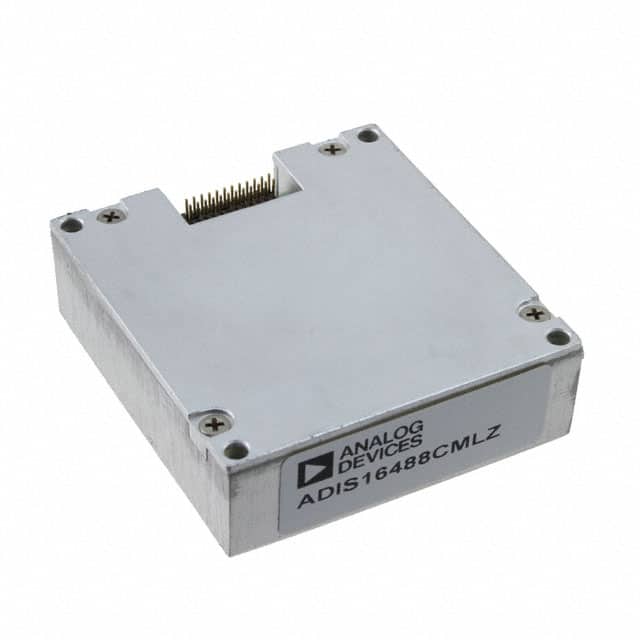

The ADIS16488CMLZ is a tactical-grade, ten degrees of freedom Inertial Measurement Unit (IMU) from Analog Devices. This complete inertial system integrates a triaxial gyroscope with a dynamic range of ±450°/sec, a triaxial accelerometer with a range of ±18g, and a triaxial magnetometer with a range of ±2.5 gauss. It also features a digital pressure sensor capable of measuring from 300 mbar to 1100 mbar.
Designed for ease of integration, the ADIS16488CMLZ offers factory-calibrated sensitivity, bias, and axial alignment. It operates with a single supply voltage between 3.0 V and 3.6 V and features an SPI-compatible serial interface for data collection and configuration. The device has a fast start-up time of approximately 500 ms and an operating temperature range of -40°C to +85°C (TA).
Applications for the ADIS16488CMLZ include platform stabilization and control, navigation, personnel tracking, instrumentation, and robotics. Its robust design includes 2000g shock survivability and a wide operating temperature range of -55°C to +105°C (CML). The IMU is supplied in a module package and is suitable for chassis mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gyroscope dynamic range is ±450°/sec.
The accelerometer dynamic range is ±18 g.
The operating temperature range is -40°C to +85°C (TA).
It uses an SPI-compatible serial interface.
The single-supply operation is from 3.0 V to 3.6 V.
