| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accelerometer Range | |
| Angle Random Walk (Gyroscope) | |
| Axis to Axis Misalignment Error | |
| Calibration Temperature Range | |
| Gyroscope Range | |
| In-Run Bias Stability (Accelerometer) | |
| In-Run Bias Stability (Gyroscope) | |
| Mechanical Shock Survivability | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel |

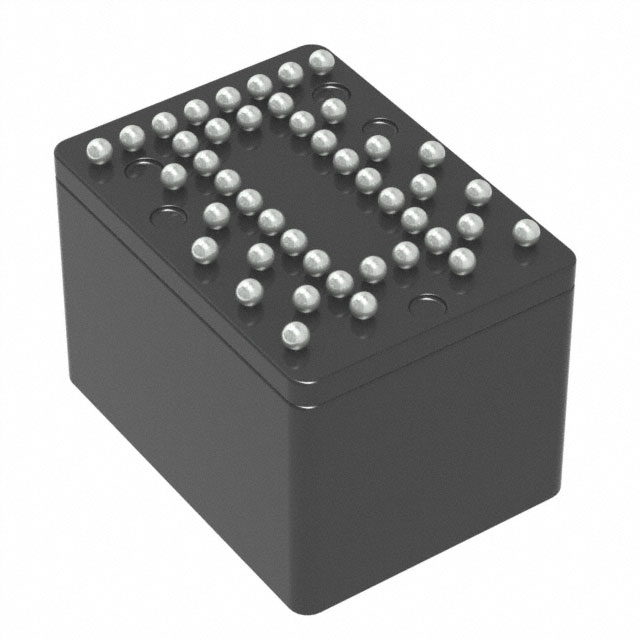

The ADIS16475-1BMLZ from Analog Devices is a precision, miniature MEMS Inertial Measurement Unit (IMU) that integrates a triaxial gyroscope and a triaxial accelerometer. This device is factory calibrated for sensitivity, bias, and axial alignment, simplifying system integration.
Key specifications include a ±8g accelerometer range with 3.6 μg in-run bias stability and selectable gyroscope ranges of ±125°/sec, ±500°/sec, or ±2000°/sec, with 2°/hr in-run bias stability for the ADIS16475-1 model. It also features a low angle random walk of 0.15°/√hr for the ADIS16475-1 and ADIS16475-2 models.
The IMU operates over a wide temperature range of -40°C to +105°C and is powered by a single supply voltage from 3.0V to 3.6V. It communicates via an SPI-compatible interface, supporting programmable operation and control, as well as automatic and manual bias correction.
Designed for applications such as navigation, stabilization, and instrumentation in unmanned vehicles, robotics, and industrial automation, the ADIS16475-1BMLZ is available in a 44-BGA module package suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The available gyroscope ranges are ±125°/sec, ±500°/sec, and ±2000°/sec.
The accelerometer range is ±8 g.
The operating temperature range is -40°C to +105°C.
It uses an SPI compatible data communications interface.
The single-supply operation voltage is 3.0 V to 3.6 V.
