| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,031 pcs
|
2031 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package |

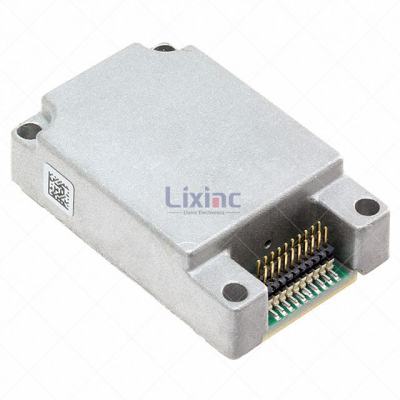

The ADIS16445BMLZ from Analog Devices is a high-performance Inertial Measurement Unit (IMU) offering six degrees of freedom. This sensor combines a triaxial digital gyroscope and a triaxial digital accelerometer, providing comprehensive motion sensing capabilities.
Key specifications include a gyro input range of ±250°/s, an accelerometer range of 5g, and an output sample rate of up to 819.2 SPS via an SPI interface. The device operates within a calibrated temperature range of -40°C to 70°C and has an operating temperature range of -40°C to 85°C.
Designed for robust performance, the ADIS16445BMLZ features typical axis-to-axis alignment of 0.05°, and typical gyro bias repeatability of 0.5°/s. Its typical in-run bias stability for the gyroscope is 12°/hr, and for the accelerometer, it is 75µg.
This IMU is suitable for various applications requiring precise motion and orientation data. It is available in a module package and supports chassis mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C (TA).
The ADIS16445BMLZ includes an accelerometer and a gyroscope, providing 6 degrees of freedom.
The maximum output sample rate is 819.2 SPS.
The ADIS16445BMLZ uses an SPI output interface.
The ADIS16445BMLZ is designed for chassis mount installation.
