| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,016 pcs
|
2016 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage |

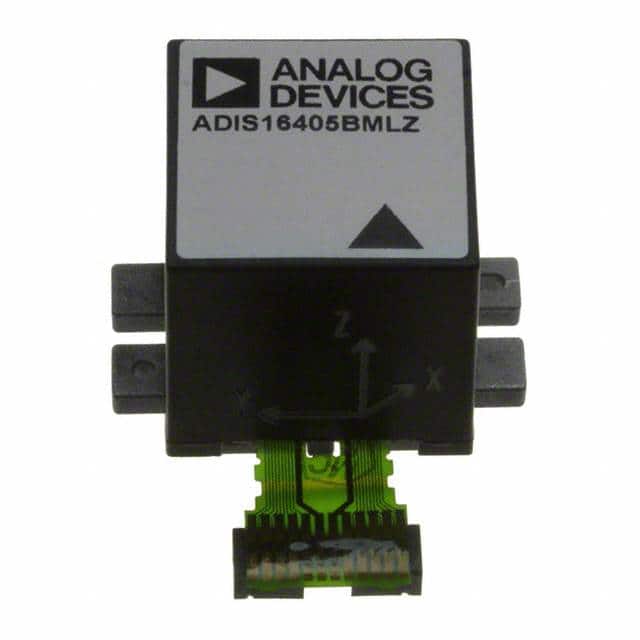

The Analog Devices ADIS16405BMLZ is a comprehensive inertial system integrating a triaxial gyroscope, triaxial accelerometer, and triaxial magnetometer. This iSensor product utilizes iMEMS technology for optimized dynamic performance. It is factory-calibrated for sensitivity, bias, and axial alignment, ensuring accurate measurements across its operating temperature range of -40°C to +105°C.
The device supports multiple gyroscope ranges (±75°/sec, ±150°/sec, ±300°/sec), an accelerometer range of ±18 g, and a magnetometer range of ±2.5 gauss. It features an SPI-compatible serial interface for autonomous operation and data collection, requiring no external configuration commands. The ADIS16405BMLZ is designed for chassis mounting and operates on a single supply voltage from 4.75 V to 5.25 V.
Key features include a 220 ms start-up time, 4 ms sleep mode recovery, embedded temperature sensor, and programmable operation controls. It also includes digital I/O for data-ready and alarm indication, and alarms for condition monitoring. The unit boasts 2000 g shock survivability, making it suitable for demanding applications.
Applications for the ADIS16405BMLZ include unmanned aerial vehicles, platform control, digital compassing, and navigation systems where precise motion sensing is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C.
The available gyroscope ranges are ±75°/sec, ±150°/sec, and ±300°/sec.
The accelerometer measurement range is ±18 g.
The magnetometer measurement range is ±2.5 gauss.
The device uses an SPI-compatible serial interface.
The single-supply operation range is 4.75 V to 5.25 V.
The mounting type is Chassis Mount.
