| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,120 pcs
|
2120 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package |

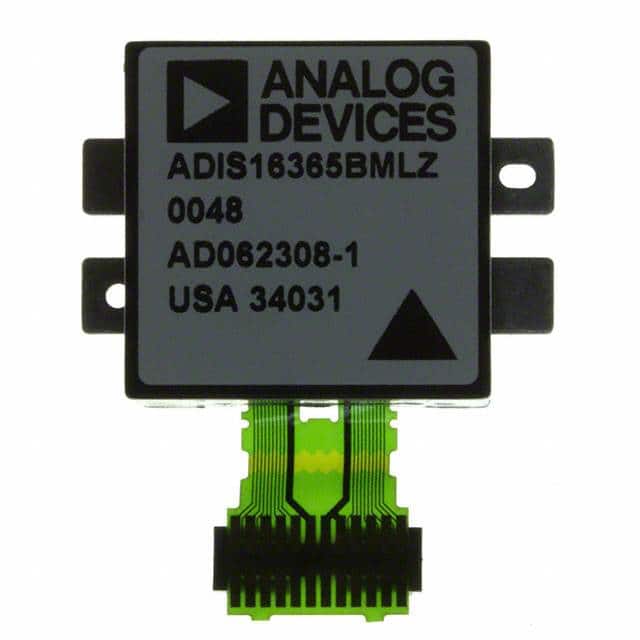

The ADIS16365BMLZ iSensor device from Analog Devices is a complete inertial system integrating a triaxis gyroscope and a triaxis accelerometer. This IMU utilizes industry-leading iMEMS technology for optimized dynamic performance. It is factory-calibrated for sensitivity, bias, and axial alignment, simplifying system integration.
Key specifications include a gyroscope range of ±75°/sec, ±150°/sec, or ±300°/sec, and an accelerometer range of ±18 g. The device features an SPI-compatible serial interface for data collection and configuration, with a bandwidth of 330 Hz. It operates from a single supply voltage of 4.75 V to 5.25 V and has an operating temperature range of -40°C to +105°C.
Designed for applications in medical instrumentation, robotics, platform controls, and navigation, the ADIS16365BMLZ offers autonomous operation and data collection. Its tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The module package is suitable for chassis mounting.
This IMU provides autonomous operation and data collection with no external configuration commands required. It includes features like automatic and manual bias correction controls, an embedded temperature sensor, and digital I/O for data ready and alarm indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C.
It includes an Accelerometer, Gyroscope, and provides 6-axis sensing.
The mounting type is Chassis Mount.
It uses an SPI interface.
The selectable gyroscope ranges are ±75°/sec, ±150°/sec, and ±300°/sec.
The accelerometer range is ±18 g.
The calibration temperature range for the ADIS16365 is −40°C to +85°C.
