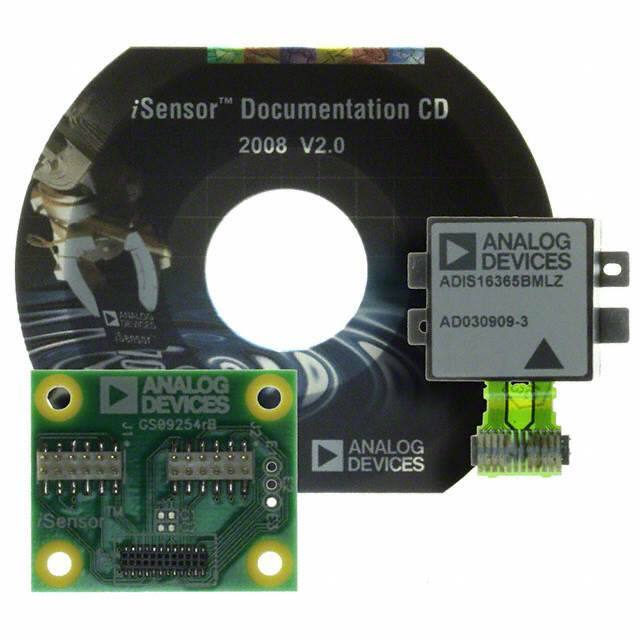

The ADIS16365/PCBZ is an evaluation interface board designed by Analog Devices for the ADIS16365 iSensor® 6-axis inertial measurement unit (IMU). This board provides a convenient 2mm pitch connector interface, simplifying the connection of the ADIS16365BMLZ module to prototyping environments using ribbon cables or hand-soldering.
The board supports a supply voltage range of 4.75V to 5.25V and communicates via SPI or a serial interface. It is compatible with the ADISUSBZ evaluation system for PC-based data collection and performance evaluation. The ADIS16365 IMU integrates a triaxial accelerometer with ±17g range and a triaxial gyroscope with selectable ranges of ±75°/s, ±150°/s, and ±300°/s, with sensitivities of 3.3mg/LSB and 0.0125 to 0.05°/s/LSB respectively.
This interface board is intended for evaluation purposes only and does not include software or source code. It is not sold separately from the module; the ADIS16365BMLZ module must be purchased separately. The board alone is supplied as a single PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $739.50 | $739.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.75V to 5.25V.
It interfaces with the Analog Devices ADIS16365 6-axis IMU (accelerometer and gyroscope).
The board supports SPI and serial interfaces.
Accelerometer range: ±17g. Gyroscope ranges: ±75°/s, ±150°/s, ±300°/s.
RoHS3 compliance is claimed but unverified from manufacturer documentation.
The MSL rating is 1 (unlimited) according to low-confidence database data.
