| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Digital Range Settings | |
| FFT Averaging | |
| FFT Records Storage | |
| FFT Size | |
| Features | |
| Frequency Response | |
| Measurement Range | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Power | |
| Sample Rate | |
| Sensing Range | |
| Sensor Type | |
| Spectral Bands |

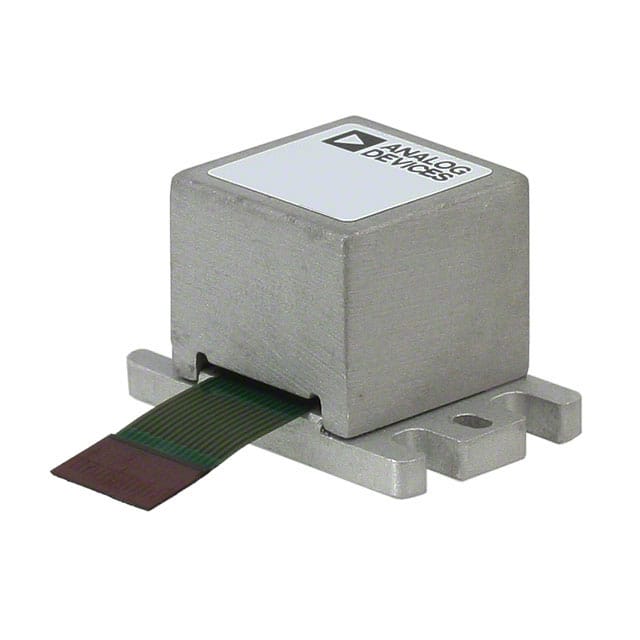

The ADIS16228CMLZ from Analog Devices is a complete vibration sensing system designed for condition monitoring and machine health applications. This digital triaxial vibration sensor integrates acceleration sensing with advanced time and frequency domain signal processing.
Key features include a ±18g measurement range and a flat frequency response up to 5 kHz, with a real-time sample mode of 20.48 kSPS. The sensor supports programmable decimation filters and offers 512-point FFT analysis for each axis, along with programmable FFT averaging up to 255 averages. It provides storage for 14 FFT records, enabling tracking of changes over time.
The device operates from a single 3.0 V to 3.6 V supply and has an operating temperature range of -40°C to +125°C. It is housed in a 15 mm × 24 mm × 15 mm aluminum package with a flex connector, suitable for chassis mounting.
Applications include vibration analysis, condition monitoring, machine health diagnostics, and safety shutoff sensing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADIS16228CMLZ has a digital acceleration measurement range of ±18g.
The operating temperature range for the ADIS16228CMLZ is -40°C to +125°C.
The ADIS16228CMLZ operates on a single supply voltage from 3.0 V to 3.6 V.
The ADIS16228CMLZ has a real-time sample mode and capture sample modes of 20.48 kSPS.
The ADIS16228CMLZ features 512-point FFT analysis and supports programmable FFT averaging up to 255 averages.
The ADIS16228CMLZ can store 14 FFT records on all three axes.
