| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,001 pcs
|
2001 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Calibration Temperature Range | |
| Current | |
| Features | |
| In-run Bias Stability | |
| In-run Bias Stability Over Temperature | |
| Interface | |
| Operating Temperature | |
| Output Type | |
| Range ° | |
| Sensitivity (LSB | |
| Shock Survivability | |
| Sleep Mode Recovery Time | |
| Start-up Time | |
| Type | |
| Voltage |

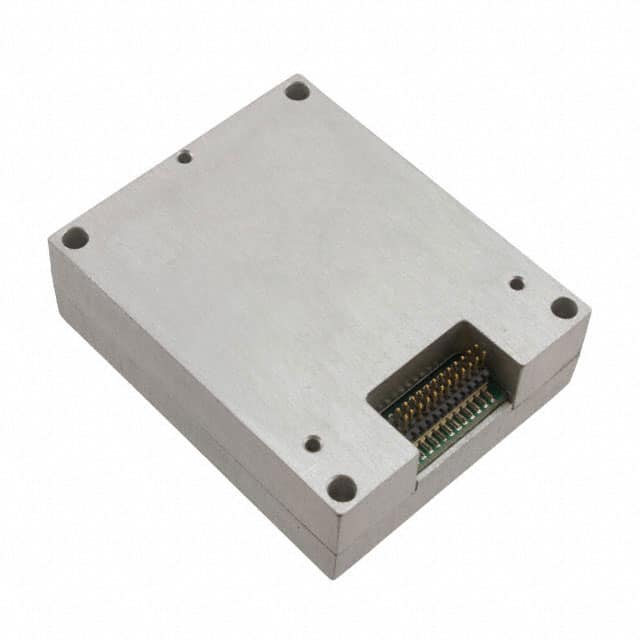

The ADIS16133BMLZ is a high-performance digital gyroscope sensing system from Analog Devices. It features a measurement range of ±1200°/sec and a wide bandwidth of 335Hz, making it suitable for precision instrumentation and platform stabilization.
This gyroscope operates autonomously, requiring no external configuration commands. Key specifications include a low operating voltage range of 4.85V to 5.15V, an operating temperature range of -40°C to 105°C, and a current consumption of 88 mA. It also includes an embedded temperature sensor and supports an SPI compatible interface.
The device is factory calibrated for sensitivity and bias over a temperature range of -40°C to +85°C. It offers features such as autonomous operation, start-up time of 181 ms, and sleep mode recovery of 4.7 ms. The ADIS16133BMLZ is provided in a module package and is designed for applications in platform stabilization, industrial vehicle navigation, downhole instrumentation, and robotics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The measurement range is ±1200°/sec.
The bandwidth is 335Hz.
The operating voltage is between 4.85V and 5.15V.
The operating temperature range is -40°C to 105°C.
It uses an SPI compatible interface.
