| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
178 pcs
|
178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Crosstalk | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Switch Type | |
| Tape & Reel |
The ADG749BKSZ-REEL is an SPDT analog switch IC manufactured by Analog Devices Inc. It offers a low on-resistance of 5 Ohms maximum and fast switching times of 7ns (On) and 3ns (Off) typical.
This device operates with a single supply voltage ranging from 1.8V to 5.5V. It has a bandwidth of 200MHz (-3dB) and a channel capacitance of 7pF in the off-state. The leakage current is a maximum of 250pA, and crosstalk is -82dB at 1MHz, ensuring clean signal routing.

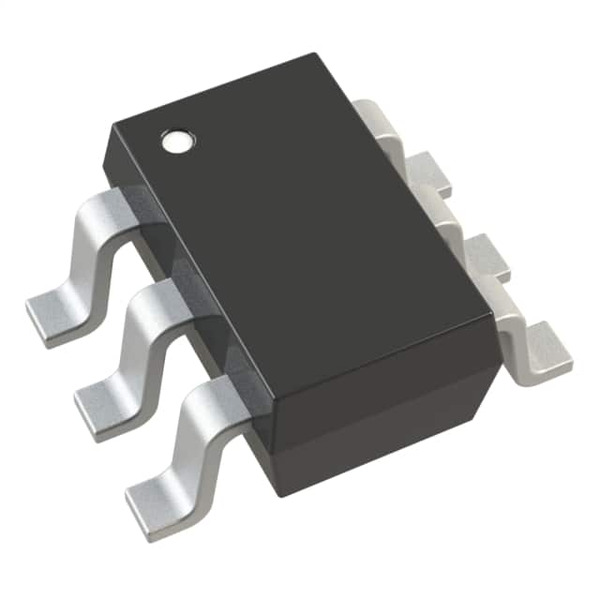

Designed for general-purpose signal routing in portable, high-density applications, the ADG749BKSZ-REEL is housed in a compact SC-70-6 (SOT-363) surface-mount package. Its operating temperature range is -40°C to 125°C.
Key performance characteristics include low on-resistance for minimal signal loss, high bandwidth for fast, high-frequency signals, and very low crosstalk and leakage for clean switching. It is suitable for applications such as portable electronics, signal routing in measurement/test equipment, and sensor multiplexing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.8V to 5.5V single supply.
SC-70-6 (also 6-TSSOP, SC-88, SOT-363) surface mount package.
-40°C to +125°C.
5 Ohm maximum.
Typical turn-on 7ns, turn-off 3ns.
200MHz.
-82dB at 1MHz.
