| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Interface | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The ADG731BSUZ is a monolithic, CMOS, 32-channel analog multiplexer from Analog Devices. It switches one of 32 inputs to a common output using a serially controlled 3-wire SPI interface. The device operates from a single supply of 1.8 V to 5.5 V or a dual supply of ±2.5 V.
Key electrical characteristics include a typical on resistance of 4 Ω with a maximum of 5.5 Ω, and an on resistance flatness of 0.5 Ω. The multiplexer offers a typical switching time of 42 ns and a -3 dB bandwidth of 18 MHz. It features break-before-make switching action and a charge injection of 1 pC.
The ADG731BSUZ is housed in a 48-TQFP (7x7 mm) surface-mount package and is specified for an operating temperature range of -40°C to +85°C. It is suitable for data acquisition systems, communication systems, and automatic test equipment.
The typical on resistance is 4 Ω, with a maximum of 5.5 Ω.
It operates from a single supply of 1.8 V to 5.5 V or a dual supply of ±2.5 V.
The operating temperature range is -40°C to +85°C.

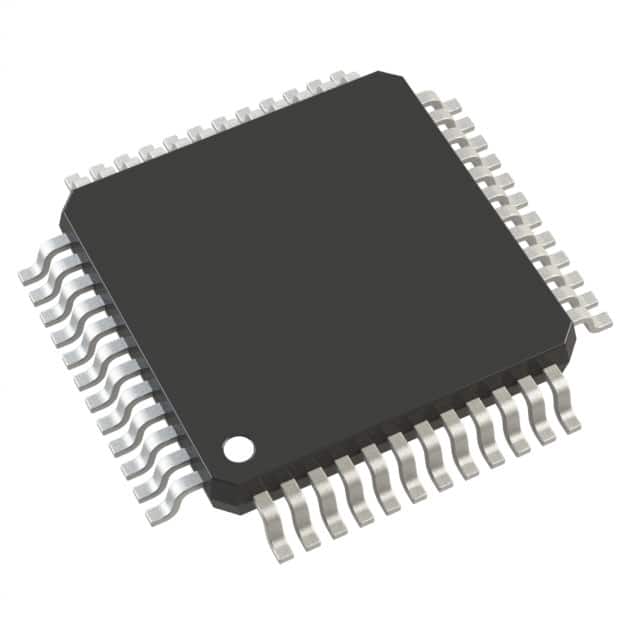

It is available in a 48-TQFP (7x7 mm) surface-mount package.
It uses a 3-wire SPI compatible serial interface.
The typical switching time is 42 ns.
It is a single 32:1 multiplexer.
