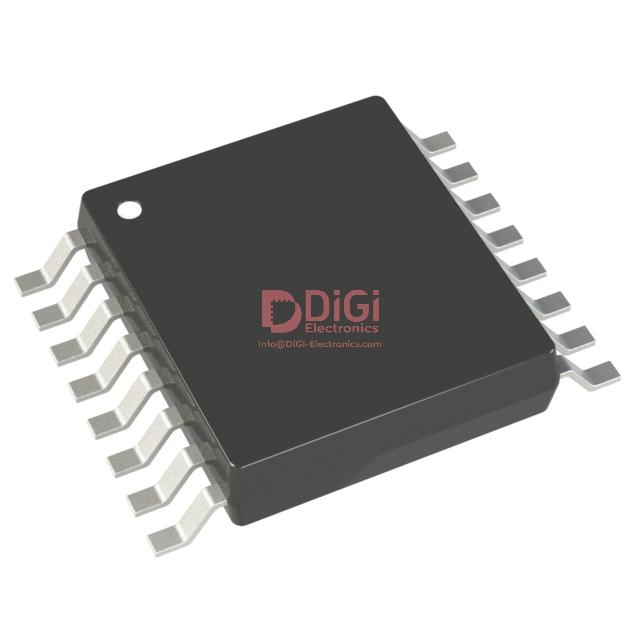

ADG729BRUZ The ADG729BRUZ is an IC Switch from Analog Devices Inc. It features a 4:1 multiplexer/demultiplexer circuit with 2 circuits and an on-state resistance of 4.5 Ohms.
Mfr Part #:

ADG729BRUZ

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The ADG729BRUZ is an IC Switch from Analog Devices Inc. It features a 4:1 multiplexer/demultiplexer circuit with 2 circuits and an on-state resistance of 4.5 Ohms.
✓ Total Stock: 31 pcs
$ Price Range: $0.41

ADG729BRUZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADG729BRUZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Charge Injection
Industrial Grade
Lead Spacing
Lead Style
Number of Circuits
SVHC Present
Storage Temperature
Supply Voltage
Switch Circuit
View Similar Products (0)

ADG729BRUZ Description

Short technical summary and product information.

The ADG729BRUZ is an integrated circuit switch manufactured by Analog Devices Inc. This component functions as a 4:1 multiplexer/demultiplexer, offering two independent switch circuits. It operates with a single supply voltage ranging from 2.7V to 5.5V and exhibits a maximum on-state resistance of 4.5 Ohms.



Key electrical characteristics include a switch time of 95ns (on) and 85ns (off), a -3dB bandwidth of 100MHz, and charge injection of 3pC. The channel capacitance is specified at 13pF (off) and 42pF (off).



This IC switch is supplied in a 16-TSSOP package, suitable for surface-mount applications. Its design makes it appropriate for various interface applications requiring signal routing and switching capabilities.

ADG729BRUZ Quick Information

Product Type: IC Switch
Series: ADG729
Canonical Name: ADG729BRUZ 4:1 IC Switch
Subcategory: Multiplexer/Demultiplexer

ADG729BRUZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADG729BRUZ Estimated Pricing

Qty Low High
1+ $0.41 $0.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADG729BRUZ Features

  • Dual 4:1 multiplexer/demultiplexer circuits
  • Low 4.5 Ohm maximum on-state resistance
  • Wide 2.7V to 5.5V supply voltage range
  • 100MHz bandwidth for signal integrity
  • Fast 95ns on, 85ns off switch times

ADG729BRUZ Applications

  • Audio signal routing in portable devices.
  • Data acquisition system multiplexing.
  • Communication interface signal switching.
  • Battery-powered analog front-end circuits.
  • Low-voltage analog signal multiplexing.

ADG729BRUZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the on-state resistance of the ADG729BRUZ?

4.5 Ohm maximum.

What is the supply voltage range for the ADG729BRUZ?

2.7V to 5.5V single supply.

What is the switch configuration of the ADG729BRUZ?

SP4T (4:1 multiplexer) with two independent circuits.

What is the bandwidth of the ADG729BRUZ?

100MHz (-3dB).

What is the package type for the ADG729BRUZ?

16-TSSOP.

What is the charge injection of the ADG729BRUZ?

3pC typical.

What are the switching times of the ADG729BRUZ?

95ns typical turn-on, 85ns typical turn-off.
