| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Crosstalk | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package |
The ADG715BRUZ is an eight-channel analog switch IC designed for low-voltage signal routing. It operates from a single supply of 2.7V to 5.5V or a dual supply of ±2.5V. The device features a maximum on-state resistance of 4.5Ω and typical switch times of 20ns on and 8ns off.
The switch provides a -3dB bandwidth of 155MHz with 11pF off-channel capacitance. Crosstalk is -90dB at 1MHz, supporting signal integrity in multi-channel applications. The operating temperature range is -40°C to +85°C.

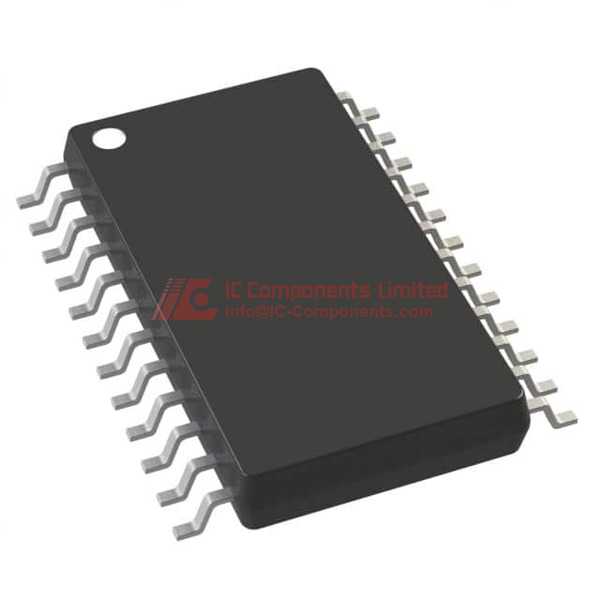

The ADG715BRUZ is supplied in a 24-TSSOP package for surface-mount assembly. Its eight independent channels make it suitable for analog signal switching in audio, video, data acquisition, and industrial control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADG715BRUZ operates from a single supply of 2.7V to 5.5V or a dual supply of ±2.5V.
It has 8 independent switch circuits.
Maximum on-state resistance is 4.5Ω.
Typical switch times are 20ns on and 8ns off.
The operating temperature range is -40°C to +85°C.
The ADG715BRUZ is available in a 24-TSSOP surface-mount package.
The -3dB bandwidth is 155MHz.
