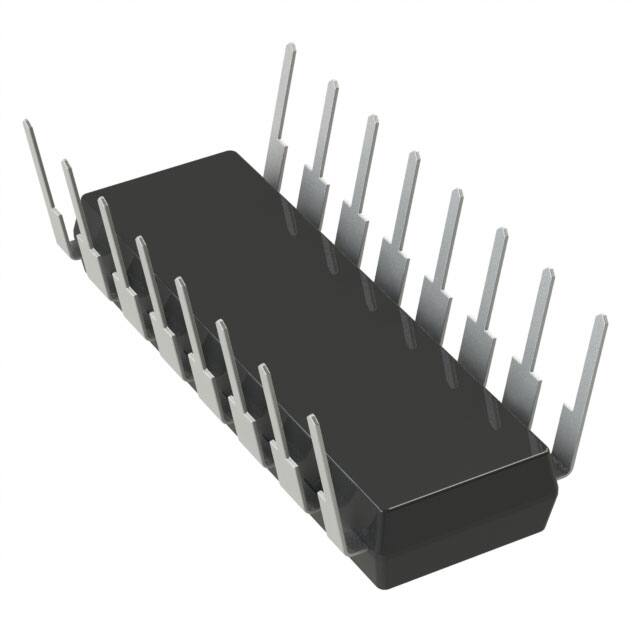

ADG509AKN The Analog Devices ADG509AKN is a dual 4-channel analog multiplexer designed for efficient signal routing. It operates with single or dual supplies and offers low leakage current.
Mfr Part #:

ADG509AKN

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices ADG509AKN is a dual 4-channel analog multiplexer designed for efficient signal routing. It operates with single or dual supplies and offers low leakage current.
✓ Total Stock: 3,505 pcs

ADG509AKN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADG509AKN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Current
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Power Dissipation
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

ADG509AKN Description

Short technical summary and product information.

The Analog Devices ADG509AKN is a monolithic CMOS analog multiplexer featuring dual 4-channel configurations. It is designed to switch one of four differential inputs to a common differential output, controlled by binary addresses and an enable input. This device operates comfortably within a wide supply voltage range of 10.8 V to 16.5 V for both single and dual supplies.



Key electrical characteristics include a maximum on-state resistance of 450 Ohms and low leakage current, typically 20 pA, making it suitable for high-precision circuits. The switch time (Ton, Toff) is a maximum of 300 ns. The device is built on an enhanced LC2MOS process, providing an increased signal capability from VSS to VDD.



Packaged in a 16-lead DIP, the ADG509AKN is suitable for through-hole mounting. It operates across an extended temperature range of -40°C to +85°C. The multiplexer ensures break-before-make switching, protecting input signals from momentary shorting. This component is a reliable choice for applications requiring flexible analog signal switching and routing.

ADG509AKN Quick Information

Product Type: Analog Multiplexer
Canonical Name: Analog Devices ADG509AKN Dual 4-Channel Analog Multiplexer
Subcategory: Multiplexer/Demultiplexer

ADG509AKN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADG509AKN Features

  • Dual 4-channel analog multiplexer.
  • Wide supply range: 10.8V to 16.5V.
  • Low leakage current: 20pA typical.
  • 450 Ohm maximum on-state resistance.
  • Extended temperature range: -40°C to 85°C.

ADG509AKN Applications

  • Suitable for high-precision circuits.
  • Analog signal switching and routing.
  • Designed for single or dual supply.
  • Protects input signals during switching.

ADG509AKN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the ADG509AKN?

The ADG509AKN operates from 10.8V to 16.5V for both single and dual supply configurations.

What is the operating temperature range of the ADG509AKN?

The operating temperature range is -40°C to +85°C.

What is the package type of the ADG509AKN?

The ADG509AKN is available in a 16-DIP (0.300", 7.62mm) package with through-hole mounting, supplied as 16-PDIP.

What is the maximum on-state resistance of the ADG509AKN?

The maximum on-state resistance is 450 Ohm.

What is the switch configuration of the ADG509AKN?

The ADG509AKN contains two SP4T switch circuits, providing a 4:1 multiplexer/demultiplexer configuration.

What is the maximum power dissipation of the ADG509AKN?

The maximum power dissipation is 28 mW.

What is the leakage current of the ADG509AKN?

The leakage current is 20 pA typical and 1 nA maximum.
