| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,960 pcs
|
2960 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| Number of Channels | |
| Power Dissipation |

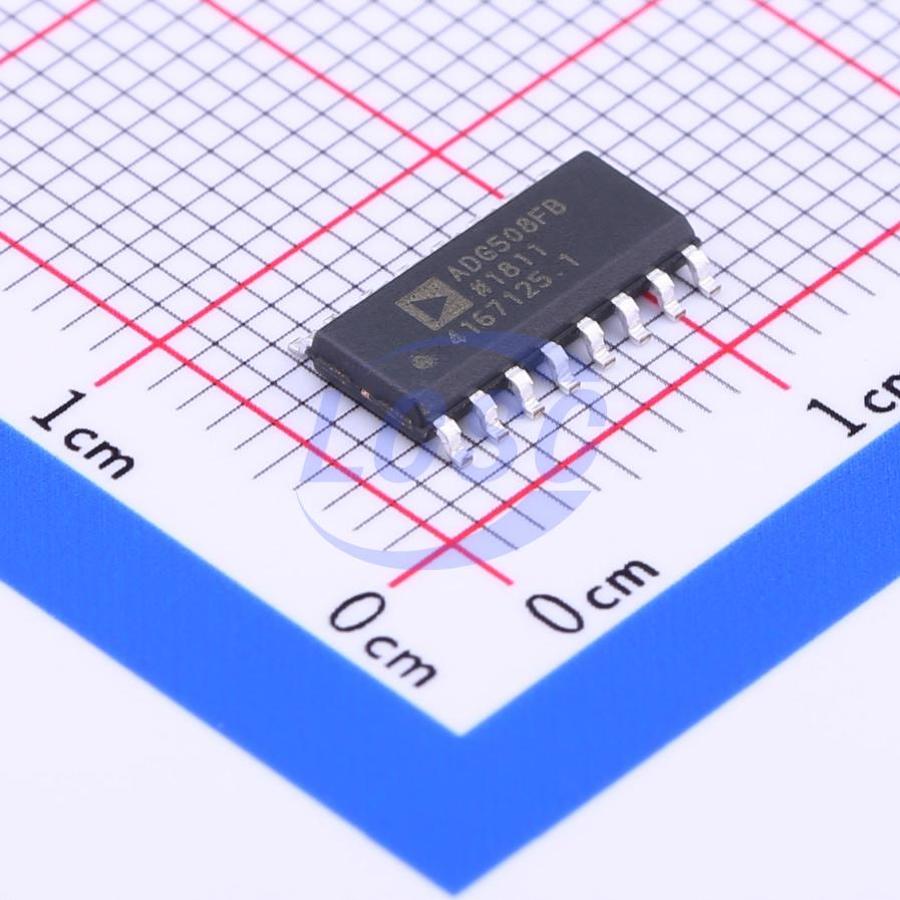

The ADG508FBRNZ-REEL7 is an 8-channel fault-protected analog multiplexer manufactured by ADI Electronics. This CMOS device provides robust protection for both the device and the signal source, capable of withstanding continuous overvoltage inputs from -40 V to +55 V. During fault conditions, such as power loss, all channels are turned off, allowing only a few nanoamperes of leakage current to flow.
Key electrical specifications include a typical on-resistance of 270 Ω, fast switching times with tON at 230 ns maximum and tOFF at 130 ns maximum, and low power dissipation of 3.3 mW maximum. The inputs are compatible with both TTL and CMOS logic levels. The multiplexer features break-before-make construction for reliable switching.
This component is suitable for existing multiplexer applications, including those requiring fault protection, as well as new designs demanding reliable multiplexer functions. Its fault and overvoltage protection capabilities make it ideal for applications where signal integrity and device longevity are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.37 | $6.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical on-resistance is 270 Ω.
The maximum tON switching time is 230 ns, and the maximum tOFF switching time is 130 ns.
The maximum power dissipation is 3.3 mW.
The device can withstand continuous overvoltage inputs from -40 V to +55 V.
RoHS3 Compliant
1 Unlimited
REACH Unaffected
