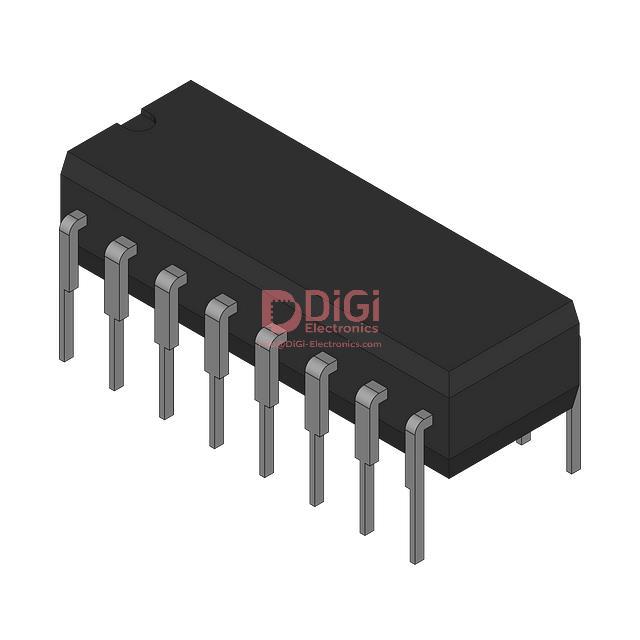

The ADG508AKN is a CMOS monolithic analog multiplexer with eight channels, manufactured by Analog Devices. It switches one of eight inputs to a common output, controlled by binary addresses and an enable input. This device is designed on an enhanced LC2MOS process, enabling operation over a wide supply voltage range of 10.8V to 16.5V for both single and dual supplies.
Key electrical characteristics include a maximum on-state resistance of 300 Ohms and channel-to-channel matching of 15 Ohms. It offers low leakage current of 1 nA maximum and typical leakage of 20 pA. The switch time is rated at 300ns for both turn-on and turn-off. The analog signal range extends from VSS to VDD.
The ADG508AKN operates within an extended temperature range of -40°C to +85°C. It is available in a 16-lead DIP package, suitable for through-hole mounting. This multiplexer is a superior alternative to older parts like the DG508A and HI-508.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-state resistance of the ADG508AKN is 300 Ohms.
The ADG508AKN operates with a single supply voltage range of 10.8V to 16.5V, or a dual supply range of ±10.8V to ±16.5V.
The operating temperature range for the ADG508AKN is -40°C to +85°C.
The ADG508AKN is available in a 16-DIP package.
The ADG508AKN has a typical leakage current of 20 pA.
