Mfr Part #:

ADG333ABR

Q: What is the maximum on-resistance of the ADG333ABR?

The maximum on-resistance is 45Ω.

Q: What is the maximum leakage current of the ADG333ABR?

The maximum leakage current is 5 nA.

Q: What supply voltages can the ADG333ABR operate at?

It operates at up to 44V for single supply and ±20V for dual supply.

Q: What is the package type for the ADG333ABR?

It is packaged in a 20SOIC surface-mount package.

Q: What is the maximum switching time for the ADG333ABR?

The maximum switching time is 175 nanoseconds on and 145 nanoseconds off.

Q: Is the ADG333ABR RoHS compliant?

RoHS3 compliance status is unverified.

Available from 1 distributors

Mfr Name: AD

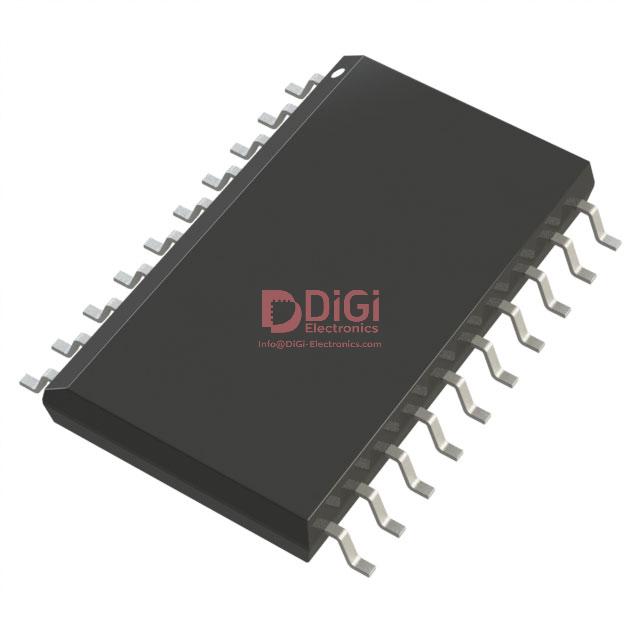

The Analog Devices ADG333ABR is a Quad SPDT Analog Switch designed for applications requiring low on-resistance and fast switching times. It features a 45 Ohm maximum on-resistance and operates up to a 44V supply.

✓ Total Stock: 27 pcs

$ Price Range: $1.20

ADG333ABR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	27 pcs On Request	27 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ADG333ABR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	AD
Charge Injection	10 pC
Mounting Type	Surface Mount
Operating Temperature	-40 °C
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

ADG333ABR Description

Short technical summary and product information.

The ADG333ABR from Analog Devices is a monolithic CMOS device featuring four independently selectable single-pole, double-throw (SPDT) switches. Designed using a linear compatible CMOS (LC2MOS) process, it offers low power dissipation and high switching speeds.

Key electrical characteristics include a low maximum on-resistance of 45 Ohms and a low channel-to-channel resistance match of 5 Ohms. The device supports a wide analog signal range extending to the power supply rails, with a maximum supply voltage of 44V. Switching times are fast, with tON typically under 175 ns and tOFF under 145 ns.

This switch is suitable for various applications such as audio and video switching, battery-powered systems, test equipment, and communication systems. Its CMOS construction ensures ultralow power dissipation, making it ideal for portable instruments. The switches conduct equally well in both directions when on and block signals up to the supply levels when off. All switches exhibit a break-before-make action, beneficial for multiplexer applications.

The ADG333ABR is supplied in a 20-pin SOIC package suitable for surface mounting. It operates across a wide temperature range from -40°C.

ADG333ABR Quick Information

Product Type: Analog Switch

Canonical Name: ADG333A Quad SPDT Switch

Subcategory: SPDT

ADG333ABR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ADG333ABR Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADG333ABR Features

Four independently selectable SPDT switches.
Low on-resistance (45 Ω max).
Fast switching times (tON < 175 ns).
Wide analog signal range to supply rails.
Low power dissipation for battery applications.

ADG333ABR Applications

Ideal for audio and video switching.
Suitable for battery-powered systems.
Used in test equipment applications.
Applicable in communication systems.

ADG333ABR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum on-resistance of the ADG333ABR?
