| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,850 pcs
|
2850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
785 pcs
|
785 pcs | On Request | 1 | On Request | On Request | 1044+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Height | |
| Insertion Loss | |
| Length | |
| Number of Channels | |
| Number of Circuits | |
| Number of Inputs | |
| Number of Outputs | |
| Test Frequency | |
| Width |

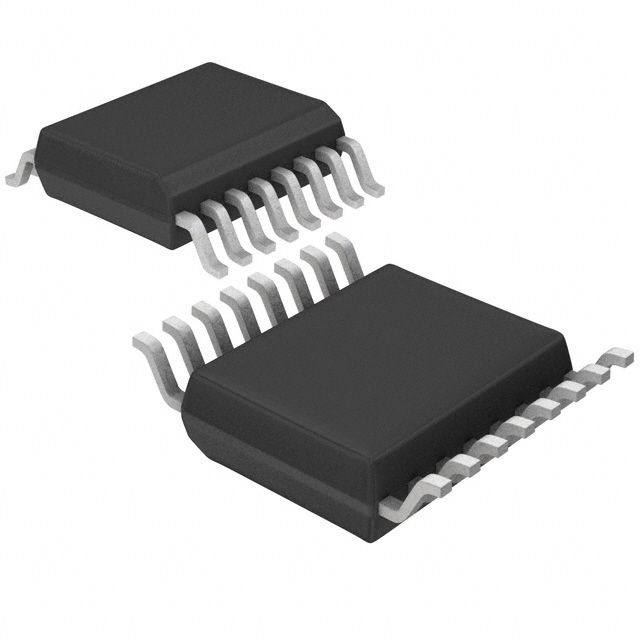

The ADG1436YRUZ is a monolithic CMOS device from Analog Devices, offering two independently selectable SPDT switches. It boasts a low on-resistance of 1.5 Ω and an on-resistance flatness of 0.3 Ω, ensuring excellent linearity and low distortion for audio signals. The device operates with dual supply voltages ranging from ±4.5V to ±16.5V and is fully specified at ±12V, ±15V, and ±5V. It supports 3V logic-compatible inputs and rail-to-rail operation.
Designed using iCMOS® technology, the ADG1436YRUZ provides high performance with low power consumption. It is suitable for applications such as automatic test equipment, data acquisition systems, battery-powered devices, audio signal routing, and communication systems. The switch exhibits break-before-make action, making it ideal for multiplexer applications. It is available in a 16-lead TSSOP package with dimensions of 5mm x 4.4mm x 1.05mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADG1436YRUZ has a maximum on-resistance of 1.5 Ω.
The ADG1436YRUZ has a bandwidth of 110 MHz.
The ADG1436YRUZ supports dual supply voltages from ±4.5V to ±16.5V.
The ADG1436YRUZ operates from -40°C to 125°C.
The ADG1436YRUZ is supplied in a TSSOP package.
