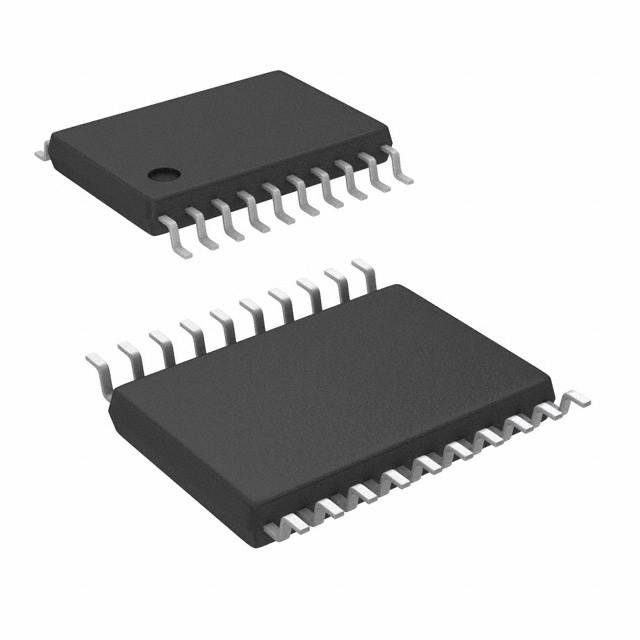

ADG1434YRUZ The ADG1434YRUZ is a Quad Single-Pole Double-Throw (SPDT) iCMOS analog switch from Analog Devices. It features low on-resistance and wide operating temperature range.
Mfr Part #:

ADG1434YRUZ

Available from 3 distributors
Mfr Name: AD
AD
The ADG1434YRUZ is a Quad Single-Pole Double-Throw (SPDT) iCMOS analog switch from Analog Devices. It features low on-resistance and wide operating temperature range.
✓ Total Stock: 1,009 pcs
$ Price Range: $0.99

ADG1434YRUZ Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 21+ On Request On Request
Chanetech ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADG1434YRUZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Height
Insertion Loss
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Power Dissipation
Supply Current
Test Frequency
Width
View Similar Products (0)

ADG1434YRUZ Description

Short technical summary and product information.

The ADG1434YRUZ is a monolithic industrial CMOS (iCMOS) analog switch from Analog Devices, featuring four independently selectable SPDT switches. It offers a low maximum on-resistance of 4.7 Ω at 25°C and on-resistance flatness of 0.5 Ω, making it suitable for applications requiring low distortion.



This switch operates with dual supply voltages and supports rail-to-rail operation. It has a bandwidth of 200 MHz and an insertion loss of 0.24 dB. The device is fully specified for ±15 V, ±12 V, and ±5 V supplies, with 3 V logic-compatible inputs. It can handle up to 115 mA of continuous current per channel and exhibits break-before-make switching action.



The ADG1434YRUZ is housed in a TSSOP package with dimensions of 4.4 mm width, 1.05 mm height, and 6.5 mm lead length. It operates over a wide temperature range from -40°C to 125°C. The standard package quantity is 75 units on tape and reel.



Applications for the ADG1434YRUZ include relay replacement, audio and video routing, automatic test equipment, data acquisition systems, temperature measurement systems, avionics, battery-powered systems, communication systems, and medical equipment.

ADG1434YRUZ Quick Information

Product Type: iCMOS Switch
Canonical Name: ADG1434YRUZ Quad SPDT iCMOS Switch
Subcategory: SPDT Switch

ADG1434YRUZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADG1434YRUZ Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADG1434YRUZ Features

  • Four independently selectable SPDT switches.
  • Low 4.7 Ω maximum on-resistance.
  • 200 MHz bandwidth for signal routing.
  • Wide operating temperature range.
  • Break-before-make switching action.

ADG1434YRUZ Applications

  • Ideal for relay replacement.
  • Used in audio and video routing.
  • Suitable for automatic test equipment.
  • Applicable to data acquisition systems.
  • Designed for battery-powered systems.

ADG1434YRUZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum on-resistance of the ADG1434YRUZ?

The maximum on-resistance is 4.7 Ω at 25°C.

What is the bandwidth of the ADG1434YRUZ switch?

The bandwidth is 200 MHz.

What is the operating temperature range for the ADG1434YRUZ?

The operating temperature range is from -40°C to 125°C.

What package type is the ADG1434YRUZ supplied in?

The ADG1434YRUZ is supplied in a TSSOP package.

How many channels does the ADG1434YRUZ have?

The ADG1434YRUZ has 4 channels.

What is the standard package quantity for the ADG1434YRUZ?

The standard package quantity is 75 units.
