| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,321 pcs
|
2321 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,057 pcs
|
1057 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Number of Channels | |
| Number of Inputs | |
| Number of Outputs | |
| Package Quantity | |
| Storage Temperature | |
| Tape & Reel |

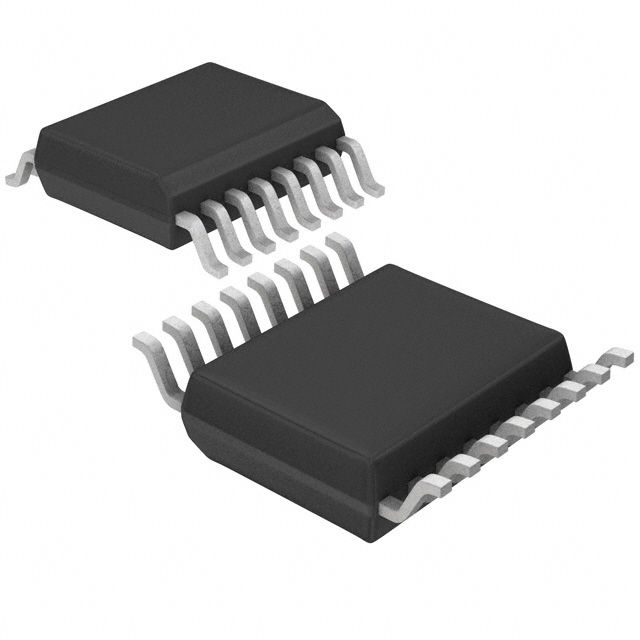

The ADG1408YRUZ-REEL7 is an 8-channel monolithic iCMOS analog multiplexer manufactured by Analog Devices. It is designed to switch one of eight inputs to a common output, controlled by binary address lines. This device offers a maximum on-resistance of 4.7 Ω at 25°C and an on-resistance flatness of 0.5 Ω, making it suitable for applications requiring low distortion.
With a bandwidth of 60 MHz, the ADG1408YRUZ-REEL7 supports dual supply voltages from ±4.5V to ±16.5V and single supply ranges from 5V to 16.5V. It operates across a wide temperature range of -40°C to 125°C. The device is housed in a 16-lead TSSOP package and features 3V logic-compatible inputs.
Applications for this multiplexer include relay replacement, audio and video routing, automatic test equipment, data acquisition systems, temperature measurement systems, avionics, battery-powered systems, communication systems, and medical equipment. Its iCMOS construction ensures ultralow power dissipation, ideal for portable and battery-powered instruments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADG1408YRUZ-REEL7 has a maximum on-resistance of 4.7 Ω at 25°C.
The bandwidth of the ADG1408YRUZ-REEL7 is 60 MHz.
The ADG1408YRUZ-REEL7 supports dual supply voltages from ±4.5V to ±16.5V and single supply voltages from 5V to 16.5V.
The ADG1408YRUZ-REEL7 operates from -40°C to 125°C.
The ADG1408YRUZ-REEL7 is supplied in a 16-lead TSSOP package.
