| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,198 pcs
|
3198 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Charge Injection | |
| Mounting Type |

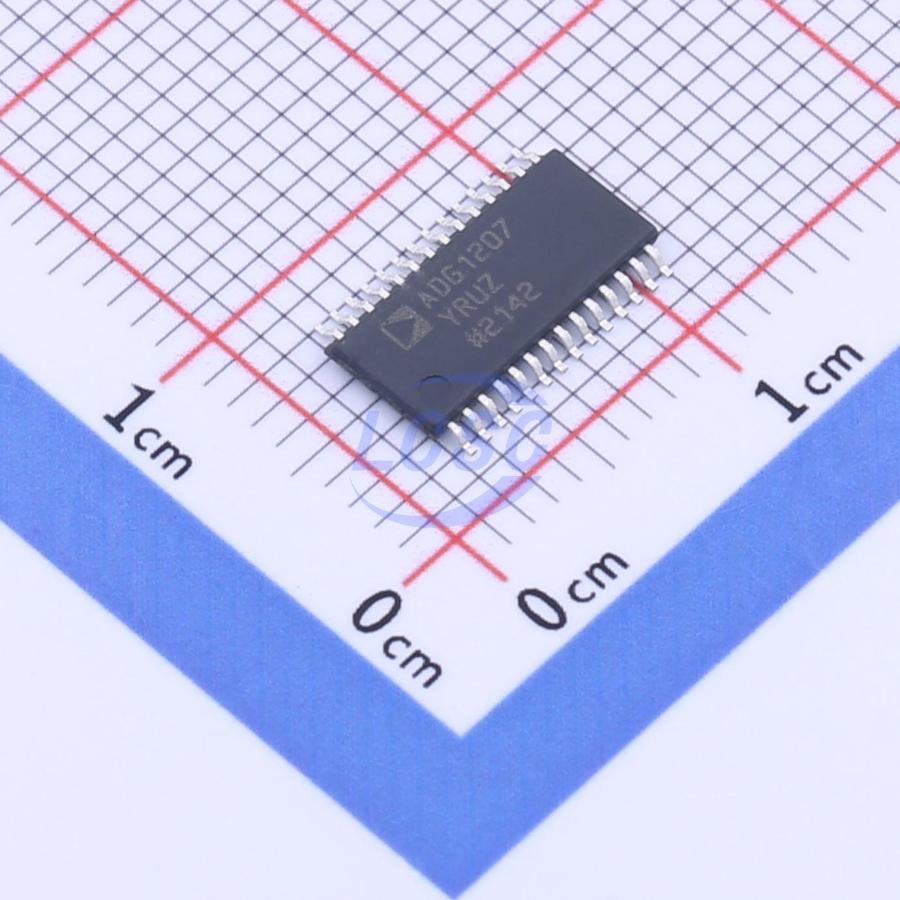

The ADG1207YRUZ is a monolithic iCMOS analog multiplexer from Analog Devices, featuring eight differential channels. It allows one of eight differential inputs to be switched to a common differential output, controlled by 3-bit binary address lines and an enable input.
Key electrical specifications include a low on-resistance of 120 Ω, minimal off capacitance of 1.5 pF, and very low charge injection of less than 1 pC over the full signal range. The device operates with a 33 V supply range and features 3 V logic-compatible inputs, enabling rail-to-rail operation.
Designed using Analog Devices' iCMOS process, the ADG1207YRUZ combines high voltage capability with low power consumption and reduced package size. Its ultralow capacitance and exceptionally low charge injection make it an ideal choice for data acquisition systems, automatic test equipment, and audio/video routing where low glitch and fast settling times are critical.
The multiplexer is available in a 28-lead TSSOP package and is designed for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.50 | $8.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The on-resistance of the ADG1207YRUZ is 120 Ohms.
The off capacitance for the ADG1207YRUZ is 1.5 pF.
The charge injection is less than 1 pC over the full signal range.
The device supports a supply voltage range of 33V.
Yes, the logic-compatible inputs are 3V.
The ADG1207YRUZ is supplied in a 28-lead TSSOP package.
