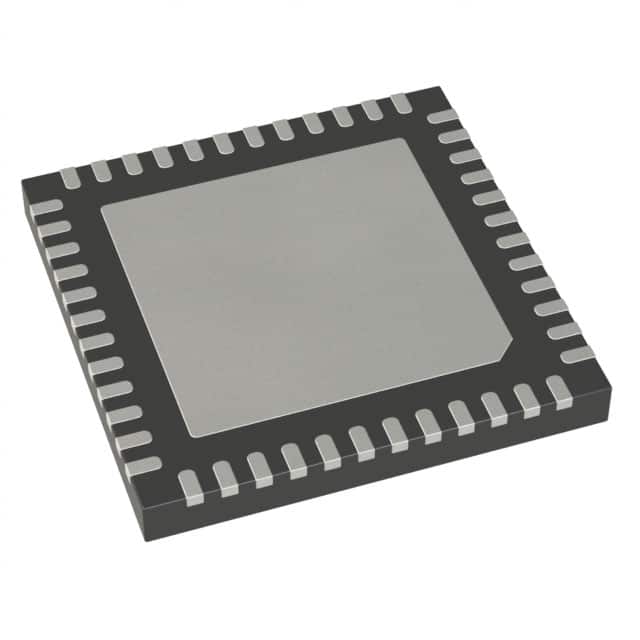

The ADF7020BCPZ from Analog Devices is a high-performance, low-power RF transceiver IC designed for ISM band applications. It supports a wide frequency range from 431 MHz to 478 MHz and 862 MHz to 956 MHz, with data rates up to 200 kbps for FSK modulation and 64 kbps for ASK modulation.
This transceiver IC operates with a power supply ranging from 2.3 V to 3.6 V. It features programmable output power from -16 dBm to +13 dBm and receiver sensitivities as low as -119 dBm. The device includes an on-chip VCO and fractional-N PLL, a 7-bit ADC, and a temperature sensor. It consumes low power, with 19 mA in receive mode and 26.8 mA in transmit mode at 10 dBm output.
The ADF7020BCPZ is available in a 48-VFQFN Exposed Pad, CSP package, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. Key applications include low-cost wireless data transfer, remote control systems, wireless metering, and home automation.
This transceiver IC supports various modulation schemes including ASK, FSK, GFSK, GMSK, MSK, OOK, and O-QPSK. It features a digital RSSI and an integrated Tx/Rx switch. The leakage current in power-down mode is less than 1 μA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3 V to 3.6 V.
The ADF7020BCPZ is available in a 48-VFQFN Exposed Pad, CSP package.
The operating temperature range is -40°C to 85°C.
The maximum data rate supported is 200 kbps for FSK modulation.
The maximum output power is 13 dBm.
The receiver sensitivity at 1 kbps FSK is -119 dBm.
