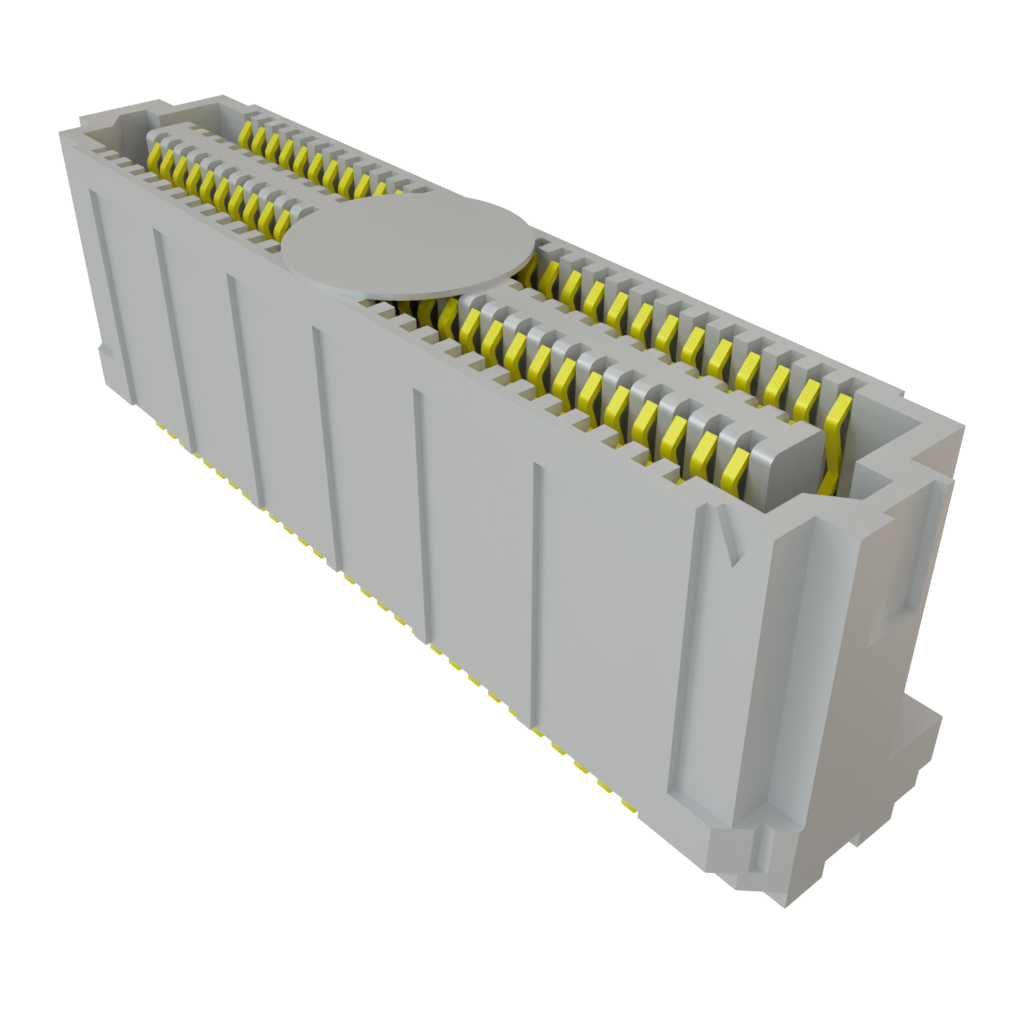

The Samtec ADF6-30-07.5-L-4-2-A-TR is a high density array socket from the ADF6 series, designed for mezzanine board-to-board applications. It features 120 positions arranged in 4 rows on a 0.635mm pitch, providing a compact and high-density interconnect solution.
This socket has a surface mount mounting type and a lead style of 7.5mm. It is rated for an operating temperature range of -55°C to +125°C, a current rating of 1.34A per pin (with 4 pins powered), and a working voltage of 155 VAC / 219 VDC. The contacts are made of copper alloy with a gold finish of 100.0µin (2.54µm). The insulator is black LCP.
The connector includes a board guide feature and supports mated stacking heights of 9mm, 11mm, 14mm, and 16mm. It is lead-free solderable per the datasheet and is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.41 | $18.41 |
| 10+ | $15.84 | $15.84 |
| 100+ | $14.57 | $14.57 |
| 250+ | $13.84 | $13.84 |
| 400+ | $12.95 | $12.95 |
| 800+ | $12.83 | $12.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.635mm (0.025").
It has 120 positions arranged in 4 rows.
The current rating is 1.34A per pin with 4 pins powered.
The operating temperature range is -55°C to +125°C.
The working voltage is 155 VAC / 219 VDC.
It uses surface mount mounting.
