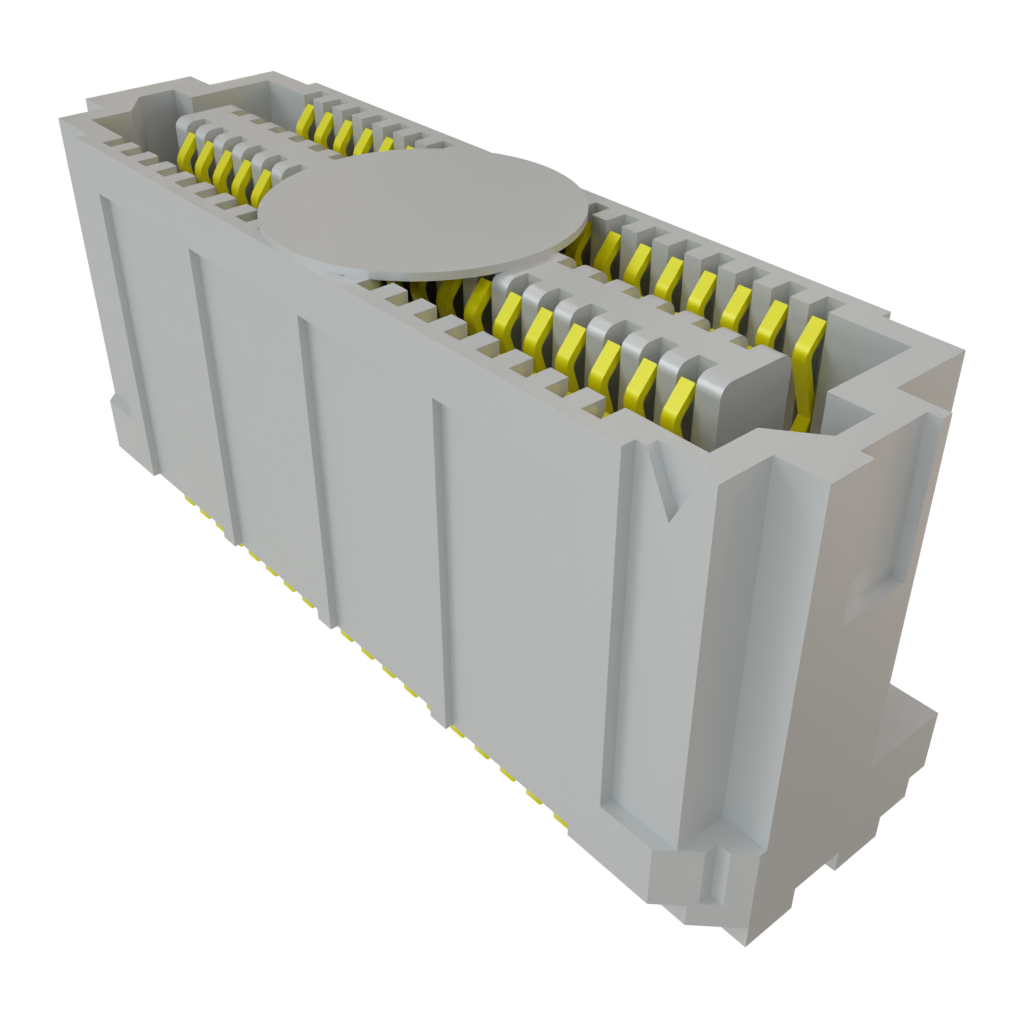

The Samtec ADF6-20-07.5-L-4-2-A-TR is a high density array socket part of the ADF6 series, designed for mezzanine board-to-board interconnects. It features 80 positions arranged in 4 rows with a 0.64mm pitch, enabling high density signal routing. The socket accepts a mating ADM6 terminal and supports stacking heights of 9mm, 11mm, 14mm, and 16mm. The contact system uses a copper alloy with 100 µ" gold finish on the contact area for reliable performance. The insulator is black liquid crystal polymer (LCP), and the connector includes a board guide feature for alignment during assembly. The device is rated for an operating temperature range of -55°C to +125°C, a current rating of 1.34A per pin, and a working voltage of 155 VAC/219 VDC. The socket is supplied in tape and reel packaging and is lead-free solderable.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.68 | $13.68 |
| 10+ | $11.63 | $11.63 |
| 25+ | $10.90 | $10.90 |
| 50+ | $10.38 | $10.38 |
| 100+ | $10.15 | $10.15 |
| 525+ | $8.62 | $8.62 |
| 1,050+ | $8.52 | $8.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.64mm (0.025 inches).
1.34A per pin (4 pins powered).
-55°C to +125°C.
Surface mount.
155 VAC / 219 VDC.
