| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| PLL | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADF4252BCPZ is an integrated circuit from Analog Devices Inc. designed for clock and frequency synthesis applications. This device functions as both a Fractional N and Integer N synthesizer, capable of operating at frequencies up to 3GHz.
Key electrical specifications include a supply voltage range of 2.7V to 3.3V and support for CMOS and TTL input types. The output is a clock signal, with a specified input to output ratio of 3:2. It also supports differential input and output.

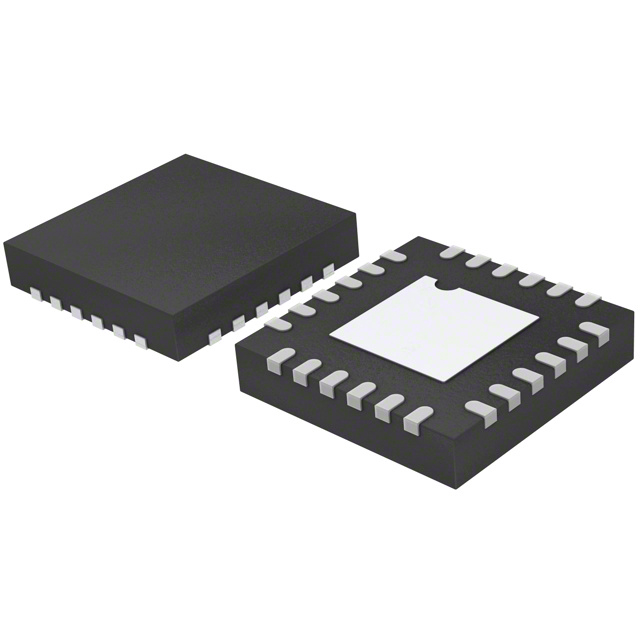

This component is specified for operation within a temperature range of -40°C to 85°C. It is housed in a 24-WFQFN Exposed Pad, CSP package and is designed for surface mount installation. The supplier device package is listed as 24-LFCSP-WQ (4x4).
Environmental compliance includes RoHS3 status, REACH unaffected status, and an MSL rating of 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 3GHz.
The supply voltage range is 2.7V to 3.3V.
The operating temperature range is -40°C to 85°C.
It is a Clock/Frequency Synthesizer (RF/IF), Fractional N, Integer N IC.
Yes, it features PLL capability.
It is supplied in a 24-WFQFN Exposed Pad, CSP package.
