| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,100 pcs
|
3100 pcs | On Request | 1 | On Request | On Request | 1518+ | On Request | On Request | |
|
2,078 pcs
|
2078 pcs | On Request | 1 | On Request | On Request | 1142+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage Supply |

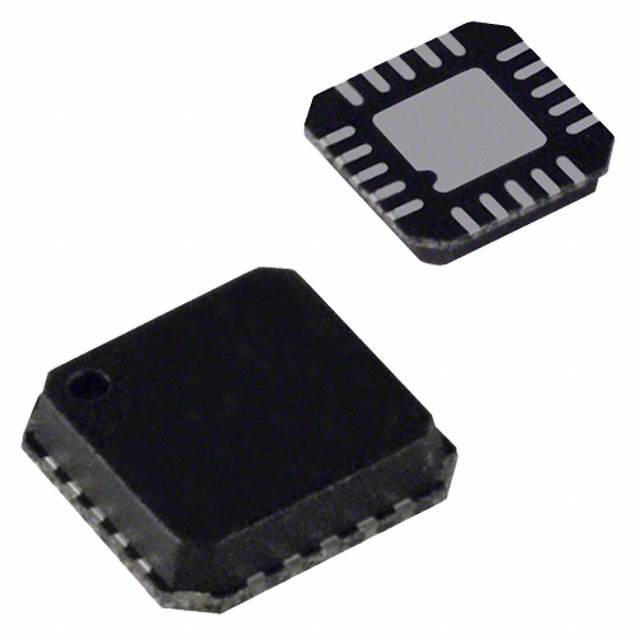

The ADF4153BCPZ-RL7 is an Integrated Circuit (IC) from Analog Devices Inc., categorized under Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers. This Fractional N Synthesizer (RF) IC features a maximum operating frequency of 4GHz.
Designed for flexibility, it supports CMOS and TTL input types and outputs a clock signal. The device operates within a supply voltage range of 2.7V to 3.3V and has an operating temperature range of -40°C to 85°C. It is housed in a 20-VFQFN Exposed Pad, CSP package, suitable for surface mounting.
Key specifications include a 2:1 input to output ratio and differential input/output capabilities. The part is RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.94 | $2.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 4GHz.
The supply voltage range is 2.7V to 3.3V.
The operating temperature range is -40°C to 85°C.
It is a Fractional N Synthesizer (RF) IC.
Yes, it supports PLL functionality.
It accepts CMOS, TTL inputs and provides a Clock output.
It is supplied in a 20-VFQFN Exposed Pad, CSP package for surface mounting.
