| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Supplier Device Package | |
| Type | |
| Voltage Supply |

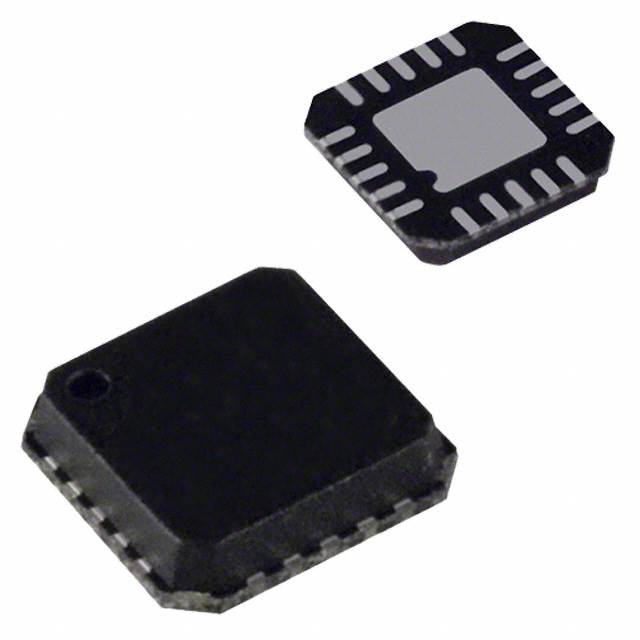

The ADF4002BCPZ is an integrated circuit from Analog Devices Inc. designed for clock generation, PLL, and frequency synthesis applications. This component functions as a Clock/Frequency Synthesizer (RF) and a Phase Detector.
Key electrical specifications include a maximum operating frequency of 400MHz. It supports a supply voltage range of 2.7V to 3.3V. The device operates within a temperature range of -40°C to 85°C.
This IC features a 2:1 input to output ratio and supports differential input/output. It includes a PLL with bypass capability and accepts CMOS or TTL input signals, outputting a clock signal. The package type is 20-WFQFN Exposed Pad | CSP, suitable for surface mounting.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level (MSL) 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 400MHz.
The operating voltage range is 2.7V to 3.3V.
The operating temperature range is -40°C to 85°C.
It is a Clock/Frequency Synthesizer (RF) and Phase Detector IC.
Yes, it has PLL with bypass capability.
The package is 20-WFQFN Exposed Pad | CSP.
The ADF4002BCPZ is RoHS3 Compliant.
