| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,414 pcs
|
1414 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Material | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

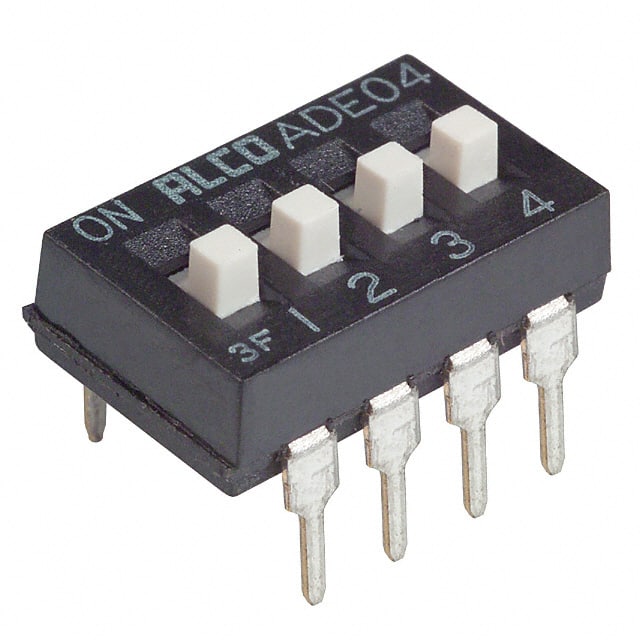

The TE Connectivity ADE04 is a 4-position Single Pole Single Throw (SPST) DIP switch. It is designed for through-hole mounting and features PC pin termination. The switch has a standard slide actuator and is rated for 100mA at 24VDC.
This DIP switch operates within a temperature range of -30°C to 85°C and is washable, allowing for aqueous solution or solvent cleaning. The contact material is copper alloy with a gold finish, ensuring reliable performance. The pitch between terminals is 2.54mm (0.100").
Key specifications include a maximum switching rating of 100mA at 24VDC, a minimum switching rating of 1 microamp at 1 millivolt, and a maximum non-switching rating of 1 Amp at 5VDC. The initial contact resistance is 50 milliohms maximum, and insulation resistance is 1,000 megohms minimum at 100 VDC. The dielectric strength is 500 VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the ADE04 DIP switch is -30°C to 85°C.
The voltage rating for the ADE04 DIP switch is 24VDC.
The current rating for the ADE04 DIP switch is 100mA.
The ADE04 DIP switch has 4 positions.
The ADE04 DIP switch uses a standard slide actuator.
Yes, the ADE04 DIP switch is washable and can be cleaned with aqueous solutions or solvents.
The pitch of the terminals on the ADE04 DIP switch is 2.54mm (0.100").
