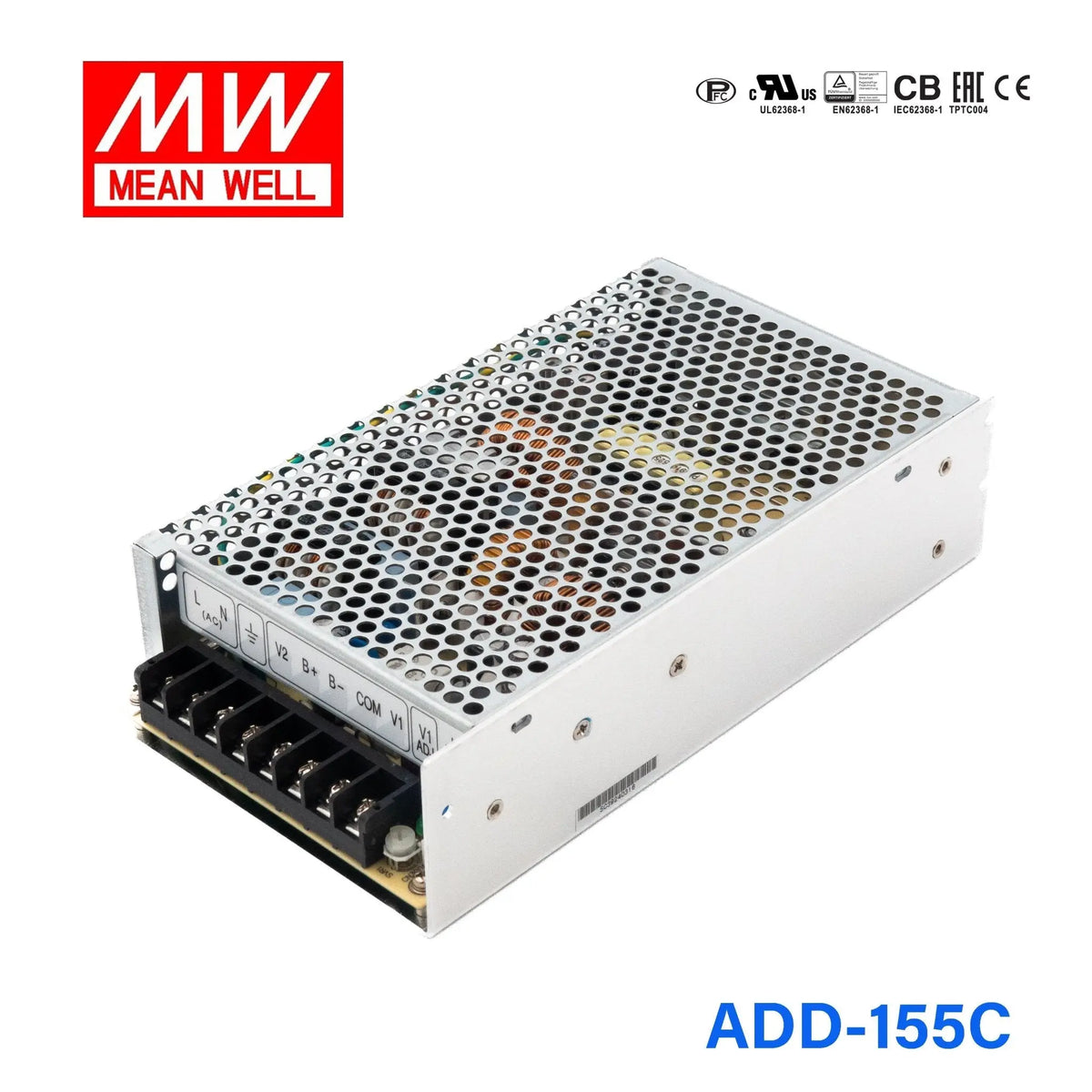

The Mean Well ADD-155C is a versatile enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a robust power output of 150W with multiple voltage outputs, including a primary 54V channel, a 5V channel, and a 53.5V channel, each with specific current ratings.
This converter features a universal AC input range of 88-264VAC and incorporates active PFC for improved power efficiency, rated at 81% typical. It supports chassis mounting and operates reliably within a temperature range of -10°C to +60°C.
Key protections include overload, over-voltage, and battery low/polarity protection, making it suitable for applications requiring stable and reliable power. The unit is cooled by free air convection and meets safety standards such as UL62368-1 and TUV EN62368-1.
The ADD-155C has three output voltages: 54V for CH1, 5V for CH2, and 53.5V for CH3.
The rated currents are 2.3A for CH1 (54V), 0.2A for CH2 (5V), and 3A for CH3 (53.5V).
The total rated power for the ADD-155C is 149.9W.
The typical efficiency of the ADD-155C is 81%.
The ADD-155C operates within a temperature range of -10°C to +60°C.
The ADD-155C is approved to UL62368-1, TUV EN62368-1, and EAC TP TC 004.
