| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Hysteresis | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay (Max) | |
| SVHC Present | |
| Tape & Reel | |
| Type |
The Analog Devices ADCMP602BRMZ-REEL7 is a single-element linear comparator designed for high-speed applications. It offers a latch feature for capturing output states and operates across a wide supply voltage range of 2.5V to 5.5V.
Key electrical characteristics include a maximum propagation delay of 5ns, a maximum input offset voltage of 5mV, and a typical output current of 50mA. The device also features a low quiescent current of 2mA and typical CMRR/PSRR of 50dB.

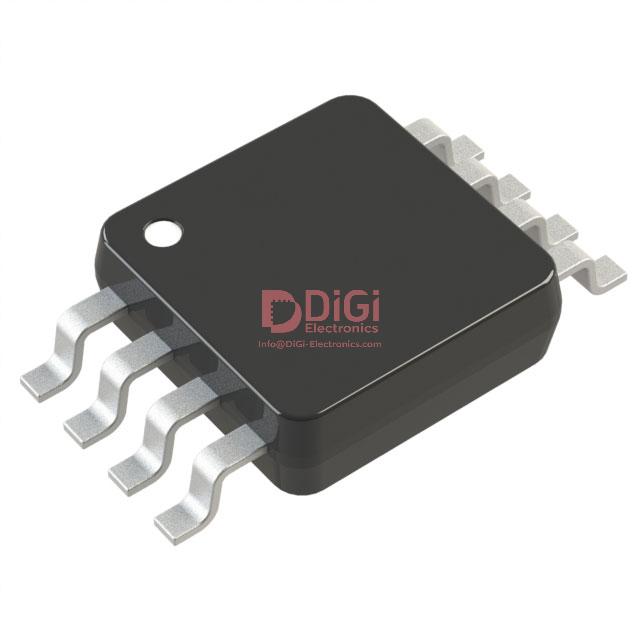

Packaged in an 8-MSOP surface-mount configuration, the ADCMP602BRMZ-REEL7 is suitable for various electronic designs requiring precise and fast signal comparison. It operates within an extended temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADCMP602BRMZ-REEL7 operates with a supply voltage range of 2.5V to 5.5V.
The ADCMP602BRMZ-REEL7 is available in an 8-TSSOP or 8-MSOP package, with a 0.118" (3.00mm) width. It is designed for surface mount applications.
The ADCMP602BRMZ-REEL7 can operate within a temperature range of -40°C to 125°C.
The ADCMP602BRMZ-REEL7 has CMOS and TTL output types.
The maximum input offset voltage is 5mV at 2.5V.
The typical propagation delay is 5ns.
Yes, the ADCMP602BRMZ-REEL7 has a hysteresis of 100µV.
