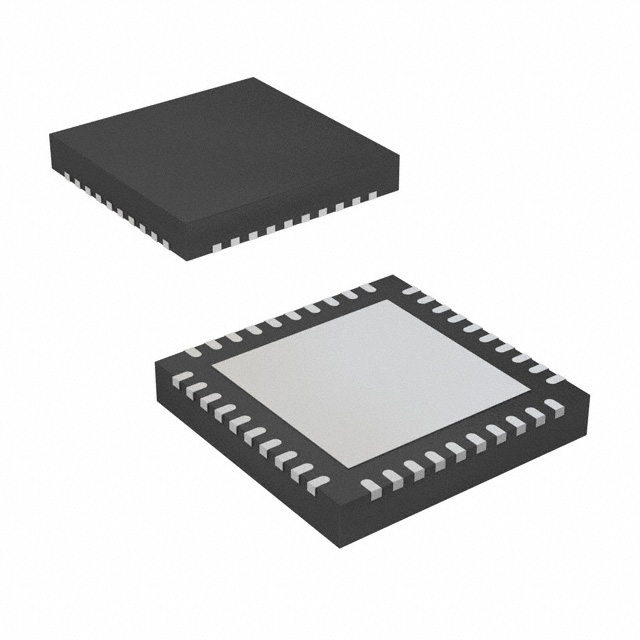

ADCLK950BCPZ The ADCLK950BCPZ is a 2:10 clock fanout buffer from Analog Devices. It operates at up to 4.8 GHz with 75 fs rms jitter and provides 10 LVPECL outputs.
Mfr Part #:

ADCLK950BCPZ

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADCLK950BCPZ is a 2:10 clock fanout buffer from Analog Devices. It operates at up to 4.8 GHz with 75 fs rms jitter and provides 10 LVPECL outputs.
✓ Total Stock: 3,500 pcs

ADCLK950BCPZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADCLK950BCPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Mounting Type
Number of Circuits
Operating Temperature
Output
Ratio
Supplier Device Package
Type
Voltage
View Similar Products (0)

ADCLK950BCPZ Description

Short technical summary and product information.

The ADCLK950BCPZ is an ultrafast clock fanout buffer fabricated on Analog Devices' proprietary XFCB3 silicon germanium (SiGe) bipolar process. It features two selectable differential inputs with on-chip 100 Ω termination resistors, accepting dc-coupled LVPECL, CML, 3.3V CMOS, and ac-coupled 1.8V CMOS, LVDS, and LVPECL inputs. The device provides 10 full-swing LVPECL output drivers, operating from a 3.3V supply (2.97V to 3.63V range).



Key electrical characteristics include a maximum frequency of 4.8 GHz and broadband random jitter of 75 fs rms. The device is designed for low jitter clock distribution, clock and data signal restoration, and level translation in high-speed applications.



The ADCLK950BCPZ is offered in a 40-VFQFN exposed pad package (40-LFCSP-VQ 6x6) for surface mount assembly. It operates over an industrial temperature range of -40°C to +85°C.

ADCLK950BCPZ Quick Information

Product Type: Clock Fanout Buffer
Canonical Name: ADCLK950BCPZ - 2:10 Clock Fanout Buffer with LVPECL Outputs, 4.8 GHz
Subcategory: Fanout Buffer

ADCLK950BCPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADCLK950BCPZ Features

  • Two selectable differential inputs.
  • 10 LVPECL outputs for clock distribution.
  • 4.8 GHz maximum operating frequency.
  • 75 fs rms broadband random jitter.
  • On-chip 100Ω input terminations.

ADCLK950BCPZ Applications

  • Low jitter clock distribution.
  • Clock and data signal restoration.
  • Level translation for high-speed signals.
  • Wireless communications systems.
  • ATE and high performance instrumentation.

ADCLK950BCPZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

2.97V to 3.63V, typical 3.3V.

What package does the ADCLK950BCPZ come in?

40-VFQFN Exposed Pad, CSP (40-LFCSP-VQ 6x6).

What is the operating temperature range?

-40°C to +85°C.

Is the ADCLK950BCPZ RoHS compliant?

RoHS3 Compliant (unverified).

What is the maximum frequency?

4.8 GHz.

How many outputs does it have?

10 LVPECL outputs.

What types of inputs are supported?

CML, CMOS, LVDS, LVPECL.
