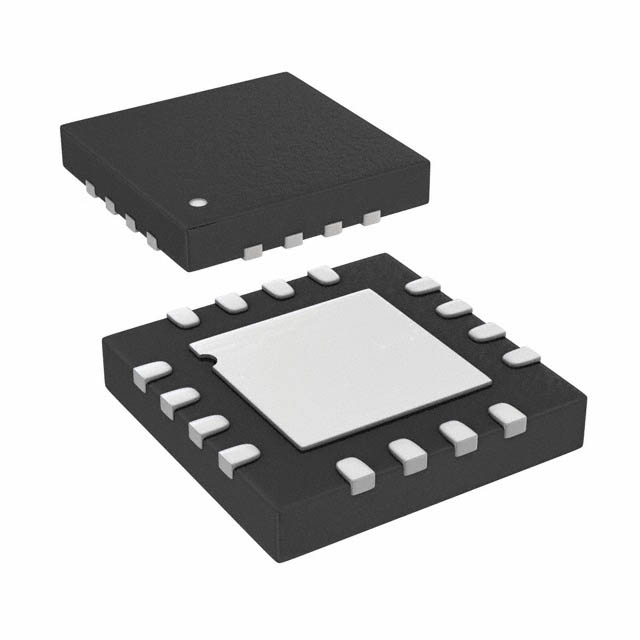

ADCLK905BCPZ-R7 Ultrafast SiGe ECL clock/data buffer with 7.5 GHz toggle rate and 10 Gbps data rate. Features 95 ps propagation delay and 60 fs random jitter.
Mfr Part #:

ADCLK905BCPZ-R7

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
Ultrafast SiGe ECL clock/data buffer with 7.5 GHz toggle rate and 10 Gbps data rate. Features 95 ps propagation delay and 60 fs random jitter.
✓ Total Stock: 3,000 pcs

ADCLK905BCPZ-R7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADCLK905BCPZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Differential
Frequency
Input
Mounting Type
Number of Circuits
Operating Temperature
Output
Propagation Delay
Ratio
SVHC Present
Supplier Device Package
Termination Style
Type
Voltage
View Similar Products (0)

ADCLK905BCPZ-R7 Description

Short technical summary and product information.

The ADCLK905BCPZ-R7 is an ultrafast clock/data buffer from Analog Devices, fabricated on the proprietary XFCB3 SiGe bipolar process. It features a 1:1 input-to-output ratio with differential clock inputs and ECL, NECL, or PECL outputs. Key specifications include a 7.5 GHz toggle rate, 10 Gbps data rate, 95 ps propagation delay, and 60 fs random jitter. The device operates from a 2.375 V to 3.63 V supply and over an extended industrial temperature range of -40°C to +125°C. It is housed in a 16-LFCSP-VQ (3x3 mm) surface-mount package with exposed pad for thermal management. Typical applications include clock and data signal restoration, level shifting, automated test equipment, and high-speed instrumentation.

ADCLK905BCPZ-R7 Quick Information

Product Type: Clock Buffer/Driver
Canonical Name: ADCLK905BCPZ-R7 Ultrafast SiGe ECL Clock/Data Buffer
Subcategory: Clock Buffers, Drivers

ADCLK905BCPZ-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADCLK905BCPZ-R7 Features

  • 7.5 GHz maximum toggle rate.
  • 95 ps typical propagation delay.
  • 60 fs random jitter.
  • Differential clock inputs with on-chip 100Ω termination.
  • Operates from 2.375V to 3.63V supply.

ADCLK905BCPZ-R7 Applications

  • Clock and data signal restoration.
  • Level shifting for ECL/NECL/PECL.
  • High-speed automated test equipment.
  • High-speed instrumentation.
  • Threshold detection and converter clocking.

ADCLK905BCPZ-R7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

2.375 V to 3.63 V.

What package does the ADCLK905BCPZ-R7 come in?

16-VFQFN Exposed Pad, CSP (16-LFCSP-VQ 3x3 mm).

What is the operating temperature range?

-40°C to +125°C.

Is the ADCLK905BCPZ-R7 RoHS compliant?

RoHS3 Compliant (unverified).

What is the maximum toggle rate?

7.5 GHz.

What is the propagation delay?

95 ps typical.

What is the maximum data rate?

10 Gbps.
