| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Format | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Power Consumption | |
| Ratio | |
| Reference Type | |
| SVHC Present | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Texas Instruments ADC16DV160CILQX/NOPB is a high-performance, dual-channel, 16-bit analog-to-digital converter (ADC) capable of sampling at up to 160 MSPS. This device utilizes a pipelined architecture and offers a high analog input bandwidth of 1400 MHz, making it suitable for demanding data acquisition applications.
Key electrical specifications include a signal-to-noise ratio (SNR) of 78 dBFS at 30 MHz and a spurious-free dynamic range (SFDR) of 95 dBFS at 30 MHz. The ADC operates over a temperature range of -40°C to 85°C and supports selectable input voltage ranges of 2.0 V PP and 2.4 V PP. It can be powered by dual supplies of 1.8V and 3.0V.

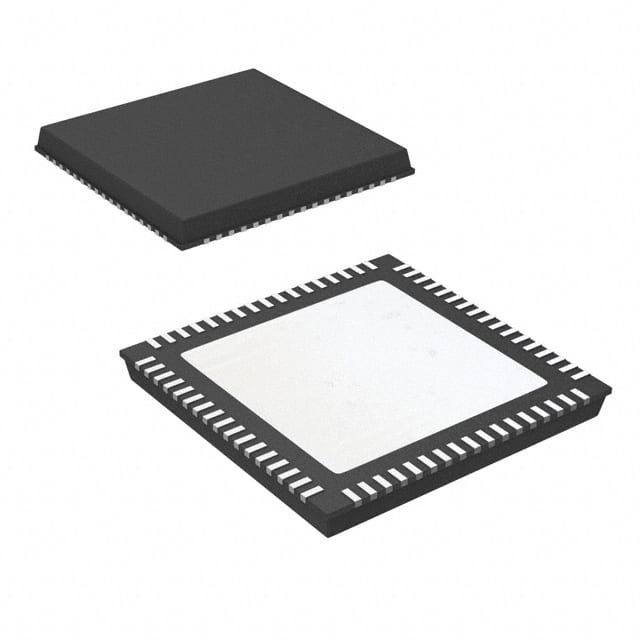

This ADC is available in a 68-pin VQFN package with exposed pad, measuring 10x10 mm. The mounting type is surface mount. The interface options include DDR LVDS and Parallel LVDS, providing flexible integration into various system designs. Additional features include on-chip precision reference, sample-and-hold circuit, and automatic calibration during power-up.
| Qty | Low | High |
|---|---|---|
| 1+ | $132.20 | $132.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADC16DV160CILQX/NOPB has a resolution of 16 bits.
The maximum sample rate for the ADC16DV160CILQX/NOPB is 160 MSPS.
This ADC has 2 input channels.
It supports DDR LVDS and Parallel LVDS interfaces.
The operating temperature range is -40°C to 85°C.
It is supplied in a 68-VQFN Exposed Pad package.
The typical power consumption is 1340 mW.
