| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,840 pcs
|
7840 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of Bits | |
| Operating Temperature | |
| Reference Type |
The ADC1410S125HN-C1 is a high-performance 14-bit analog-to-digital converter (ADC) manufactured by Integrated Device Technology. This device utilizes a pipelined architecture to achieve a maximum sampling rate of 125 MSPS (Mega Samples Per Second).
Key electrical specifications include an analog supply voltage range of 2.85V to 3.4V and a digital supply voltage range of 2.85V to 3.4V. The ADC supports both differential and single-ended input types, offering flexibility in system design. It features an external or internal reference type.

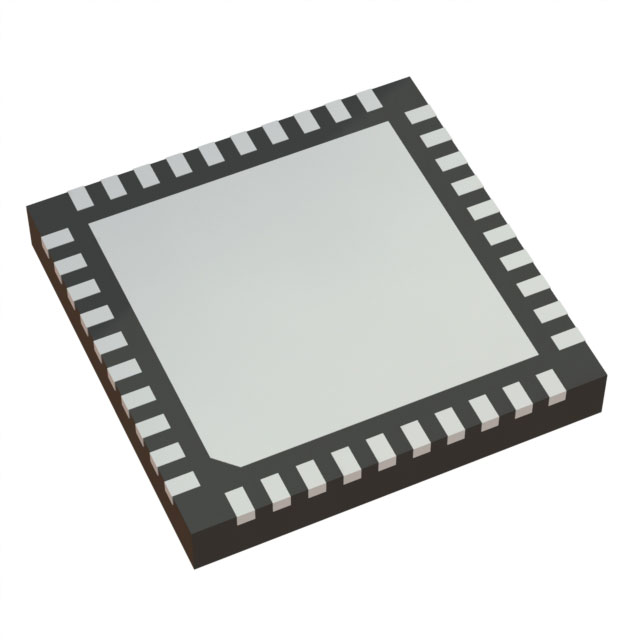

Packaged in a 40-VFQFPN (6x6) with an exposed pad, the ADC1410S125HN-C1 is designed for surface mounting. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The device is supplied in tape and reel packaging.
This ADC is ideal for applications requiring high-speed data acquisition and precise signal conversion. Its robust design and specifications make it a suitable component for demanding electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 bits.
125 MSPS.
Analog and digital supply voltage range is 2.85V to 3.4V.
-40°C to +85°C.
40-VFQFN Exposed Pad.
LVDS and Parallel.
Pipelined.
