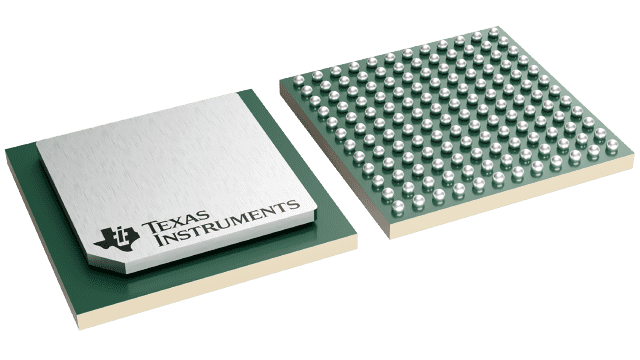

ADC12DJ3200ZEGT The Texas Instruments ADC12DJ3200ZEGT is a 12-bit analog-to-digital converter offering dual 3.2-GSPS or single 6.4-GSPS sampling rates. It is designed for RF-sampling applications.
Mfr Part #:

ADC12DJ3200ZEGT

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments ADC12DJ3200ZEGT is a 12-bit analog-to-digital converter offering dual 3.2-GSPS or single 6.4-GSPS sampling rates. It is designed for RF-sampling applications.
✓ Total Stock: 220 pcs
$ Price Range: $1,428.58

ADC12DJ3200ZEGT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADC12DJ3200ZEGT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Lead Style
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Power Consumption
Ratio
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

ADC12DJ3200ZEGT Description

Short technical summary and product information.

The Texas Instruments ADC12DJ3200ZEGT is a high-speed analog-to-digital converter (ADC) with a 12-bit resolution. It supports dual-channel operation at up to 3.2 GSPS or single-channel operation at up to 6.4 GSPS, making it suitable for demanding RF-sampling applications.



Key electrical specifications include a noise floor of -151.8 dBFS/Hz in dual-channel mode and -154.6 dBFS/Hz in single-channel mode. It features buffered analog inputs with an 8.0 GHz bandwidth and a usable input frequency range exceeding 10 GHz. The device supports the JESD204B serial data interface with a maximum lane rate of 12.8 Gbps.



Packaged in a 144-FCBGA, the ADC12DJ3200ZEGT operates within a temperature range of -40°C to 85°C. Its architecture combines FLASH and SAR converters, with features like simultaneous sampling and internal reference type. The power consumption is rated at 3 W.



This ADC is designed for applications requiring high-speed data conversion and RF signal processing. Its synchronization features, including automatic SYSREF timing calibration and timestamping, simplify system integration.

ADC12DJ3200ZEGT Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Canonical Name: 12-bit, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling analog-to-digital converter (ADC)
Subcategory: High-speed ADCs (≥10 MSPS)

ADC12DJ3200ZEGT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADC12DJ3200ZEGT Estimated Pricing

Qty Low High
1+ $1,428.58 $1,428.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADC12DJ3200ZEGT Features

  • 12-bit resolution for precise data conversion.
  • Up to 6.4 GSPS single-channel sampling.
  • Up to 3.2 GSPS dual-channel sampling.
  • 8.0 GHz analog input bandwidth.
  • JESD204B serial data interface support.

ADC12DJ3200ZEGT Applications

  • Ideal for high-speed RF signal acquisition.
  • Suitable for digital radio and software-defined radio.
  • Used in advanced test and measurement equipment.
  • Applications in radar and electronic warfare systems.

ADC12DJ3200ZEGT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the ADC12DJ3200ZEGT?

The supply voltage range is 1.05V to 1.15V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the ADC12DJ3200ZEGT available in?

It is available in a 144-FCBGA surface-mount package.

Is the ADC12DJ3200ZEGT RoHS compliant?

Reported as RoHS3 compliant, though the source data is not verified.

What is the maximum sample rate?

The maximum sample rate is 6.4 GSPS in single-channel mode and 3.2 GSPS in dual-channel mode.

What digital interface does the ADC12DJ3200ZEGT use?

The device uses a JESD204B serial data interface with support for subclass 0 and 1.

What is the analog input bandwidth?

The analog input bandwidth is 8 GHz (-3 dB).
