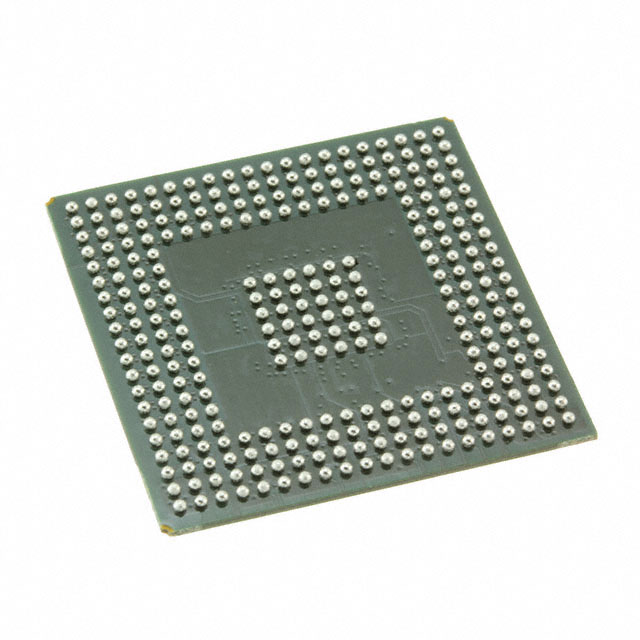

ADC12D1000CIUT The ADC12D1000CIUT is a 12-bit, dual 1.0-GSPS or single 2.0-GSPS analog-to-digital converter from Texas Instruments. It features a folding interpolating architecture, 2800 MHz analog input bandwidth, and parallel LVDS interface.
Mfr Part #:

ADC12D1000CIUT

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADC12D1000CIUT is a 12-bit, dual 1.0-GSPS or single 2.0-GSPS analog-to-digital converter from Texas Instruments. It features a folding interpolating architecture, 2800 MHz analog input bandwidth, and parallel LVDS interface.
✓ Total Stock: 269 pcs
$ Price Range: $1,025.32

ADC12D1000CIUT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request 21+ On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADC12D1000CIUT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Number of Pins
Operating Temperature
Operating Temperature Range
Ratio
Reference Type
Resolution
SVHC Present
Sampling Rate (Per Second)
Supplier Device Package
Voltage
View Similar Products (0)

ADC12D1000CIUT Description

Short technical summary and product information.

The ADC12D1000CIUT is a 12-bit analog-to-digital converter (ADC) from Texas Instruments, part of the ADC12D1x00 family. It supports dual-channel operation at 1.0 GSPS per channel or single-channel interleaved operation at 2.0 GSPS. The device uses a folding interpolating architecture and provides a parallel LVDS interface.



Key specifications include a typical signal-to-noise ratio (SNR) of 60.2 dB, effective number of bits (ENOB) of 9.6 bits, and spurious-free dynamic range (SFDR) of 71 dB. The analog input bandwidth is 2800 MHz with a peak-to-peak input voltage range of 0.8 V. Power consumption is typically 3380 mW from a 1.8V to 2V supply. The device includes an internal reference and an input buffer.



The ADC features simultaneous sampling, programmable gain and offset, and test pattern outputs for system debug. It supports 1:1 non-demuxed or 1:2 demuxed LVDS outputs and includes an AutoSync feature for multi-chip systems. The operating temperature range is -40°C to 85°C.



The device is housed in a 292-ball BGA package (27mm x 27mm) with surface mount mounting. It is RoHS3 compliant and has an MSL of 1 (unlimited).

ADC12D1000CIUT Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Canonical Name: 12-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter
Subcategory: High-speed ADCs (≥10 MSPS)

ADC12D1000CIUT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADC12D1000CIUT Estimated Pricing

Qty Low High
1+ $1,025.32 $1,025.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADC12D1000CIUT Features

  • 12-bit resolution with 1.0/2.0 GSPS sampling.
  • Folding interpolating architecture for high speed.
  • Parallel LVDS interface for data output.
  • 2800 MHz analog input bandwidth.
  • Simultaneous sampling on dual channels.

ADC12D1000CIUT Applications

  • High-speed data acquisition systems.
  • Radar and communication receivers.
  • Test and measurement equipment.
  • Software-defined radio applications.
  • Medical imaging systems.

ADC12D1000CIUT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution and sampling rate of the ADC12D1000CIUT?

12-bit resolution, dual 1.0 GSPS or single 2.0 GSPS.

What is the operating voltage range?

1.8V to 2V.

What is the operating temperature range?

-40°C to 85°C.

What package does the ADC12D1000CIUT come in?

292-ball BGA (27mm x 27mm).

Is the ADC12D1000CIUT RoHS compliant?

Yes, RoHS3 compliant.

What is the typical power consumption?

3380 mW.

What interface does it use?

Parallel LVDS.
