| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

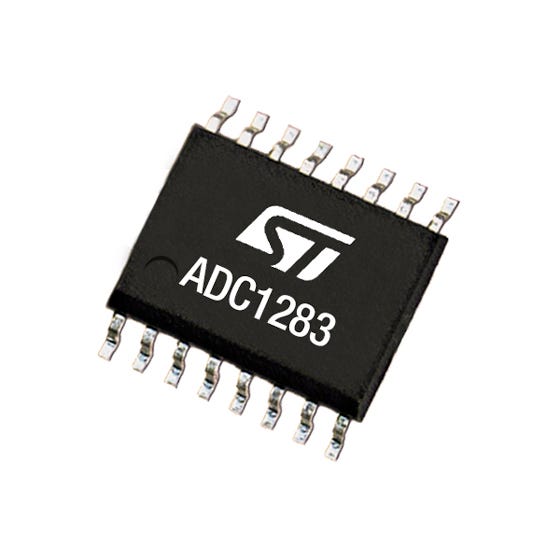

The ADC1283IPT from STMicroelectronics is a 12-bit, 8-channel successive approximation register (SAR) analog-to-digital converter. It accepts single-ended inputs through an input multiplexer and sample-and-hold circuit, providing a 1:1 MUX-to-ADC ratio. The device supports a sampling rate of up to 200 kSPS and communicates over a 4-wire serial peripheral interface (SPI).
The converter operates from a supply voltage of 2.7V to 5.5V and uses the supply as its reference. It includes one analog-to-digital converter and is rated for an operating temperature range of -40°C to 125°C, making it suitable for industrial environments. The architecture is a standard SAR type commonly used in general-purpose data acquisition.
The ADC1283IPT is offered in a 16-TSSOP surface-mount package with a body width of 4.40 mm. The SPI interface simplifies connection to microcontrollers and digital signal processors, while the compact package enables dense PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.36 | $2.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7V to 5.5V.
The ADC1283IPT is available in a 16-TSSOP surface-mount package (0.173", 4.40mm width).
The operating temperature range is -40°C to 125°C.
According to the existing product database, the ADC1283IPT is RoHS3 compliant.
The ADC1283IPT has a resolution of 12 bits.
The maximum sampling rate is 200 kSPS.
The ADC1283IPT uses a 4-wire serial SPI interface.
