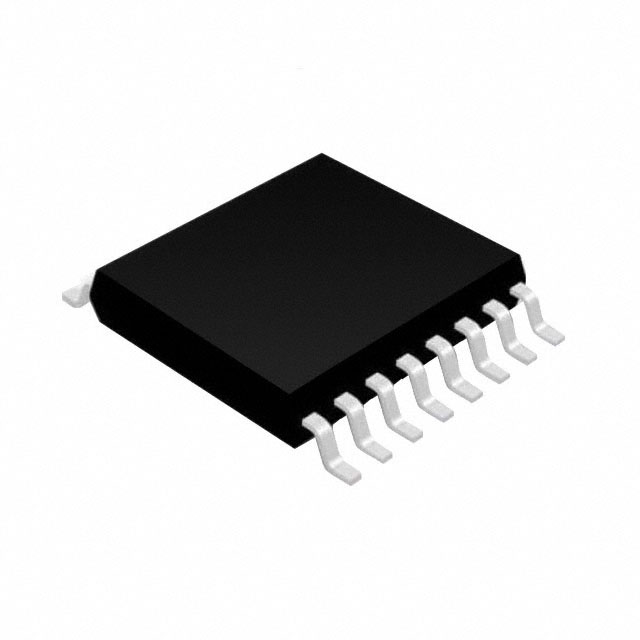

ADC120IPT The STMicroelectronics ADC120IPT is a 12-bit Analog to Digital Converter (ADC) with a 1M Samples/s sampling rate. It features an SPI interface and operates within a 2.7V to 3.6V supply range.
Mfr Part #:

ADC120IPT

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics ADC120IPT is a 12-bit Analog to Digital Converter (ADC) with a 1M Samples/s sampling rate. It features an SPI interface and operates within a 2.7V to 3.6V supply range.
✓ Total Stock: 10,050 pcs

ADC120IPT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
5,050 pcs
On Request
5050 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADC120IPT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Ratio
Sampling Rate (Per Second)
Supplier Device Package
Voltage
View Similar Products (0)

ADC120IPT Description

Short technical summary and product information.

The STMicroelectronics ADC120IPT is a 12-bit successive approximation register (SAR) Analog to Digital Converter (ADC). It offers a high sampling rate of 1M Samples/s, making it suitable for various data acquisition applications.



This ADC features a single-ended input type and communicates via an SPI data interface. It operates with analog and digital supply voltages ranging from 2.7V to 3.6V. The device is housed in a 16-TSSOP package, designed for surface mounting.



With a wide operating temperature range of -40°C to 125°C, the ADC120IPT is built for demanding environments. Its 12-bit resolution provides a good balance between accuracy and speed for many digital signal processing tasks.

ADC120IPT Quick Information

Product Type: Analog to Digital Converter (ADC)
Canonical Name: ADC120IPT 12-Bit SAR Analog-to-Digital Converter
Subcategory: ADC

ADC120IPT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADC120IPT Features

  • 12-bit resolution Analog to Digital Converter.
  • 1M Samples/s maximum sampling rate.
  • SPI serial data interface.
  • Operates from 2.7V to 3.6V supply.
  • 16-TSSOP surface mount package.

ADC120IPT Applications

  • Ideal for digital signal processing.
  • Suitable for data acquisition systems.
  • Used in embedded control applications.
  • Component for industrial automation.

ADC120IPT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

Analog and digital supply voltage range is 2.7V to 3.6V.

What package is the ADC120IPT available in?

16-TSSOP (0.173", 4.40mm Width) surface mount package.

What is the operating temperature range?

-40°C to 125°C.

Is the ADC120IPT RoHS compliant?

It is listed as ROHS3 Compliant (unverified).

What is the resolution of the ADC?

12 bits.

What is the sampling rate?

1 million samples per second.

How many input channels does it have?

8 single-ended inputs.
