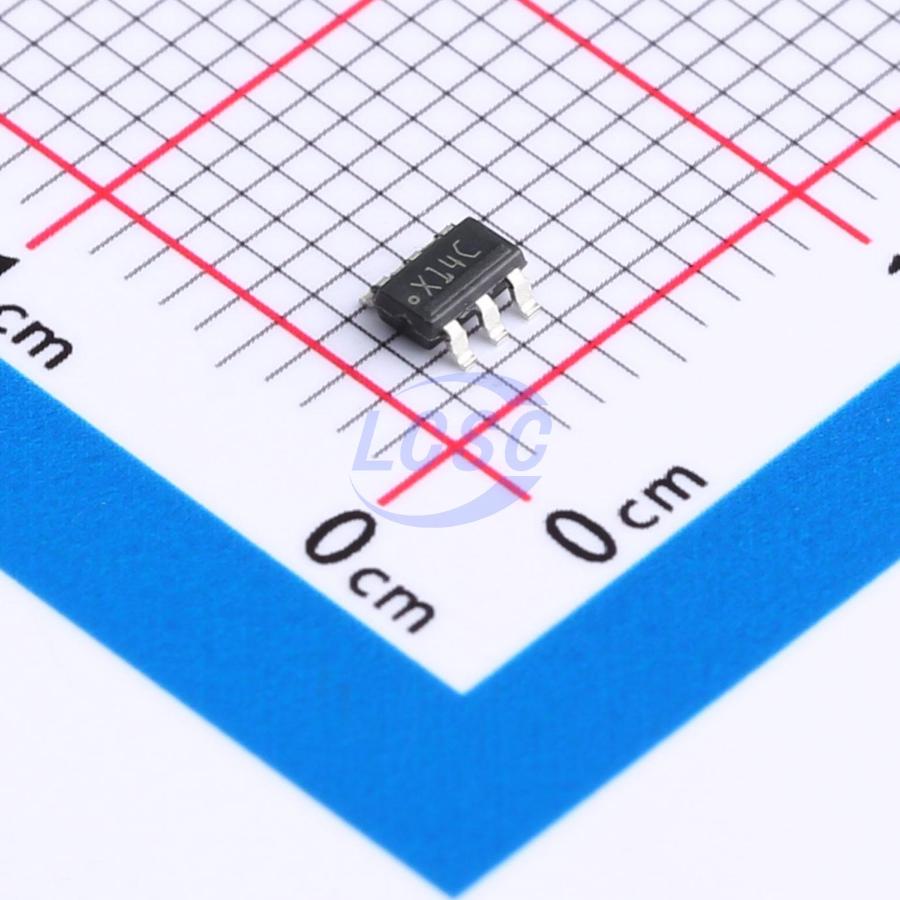

ADC101S051CIMFX/NOPB The Texas Instruments ADC101S051CIMFX/NOPB is a 10-bit, single-channel SAR analog-to-digital converter. It features an SPI/DSP compatible interface and operates over a wide supply voltage range.
Mfr Part #:

ADC101S051CIMFX/NOPB

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments ADC101S051CIMFX/NOPB is a 10-bit, single-channel SAR analog-to-digital converter. It features an SPI/DSP compatible interface and operates over a wide supply voltage range.
✓ Total Stock: 80,722 pcs
$ Price Range: $1.33

ADC101S051CIMFX/NOPB Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
49,550 pcs
On Request
49550 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
31,172 pcs
On Request
31172 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADC101S051CIMFX/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Power Consumption
Ratio
Reference Type
Resolution
Sampling Rate (Per Second)
Supplier Device Package
Voltage
View Similar Products (0)

ADC101S051CIMFX/NOPB Description

Short technical summary and product information.

The ADC101S051CIMFX/NOPB from Texas Instruments is a versatile 10-bit analog-to-digital converter (ADC) designed for various data acquisition applications. It utilizes a successive-approximation register (SAR) architecture, offering a maximum sample rate of 500 kSPS.



This single-channel ADC supports a flexible supply voltage range from 2.7V to 5.25V, making it suitable for diverse power requirements. The device features an SPI, QSPI, MICROWIRE, and DSP compatible serial interface for easy integration into digital systems. Its typical power consumption is 2.7 mW, with a power-down feature to reduce consumption further.



The ADC101S051CIMFX/NOPB is specified for operation across an industrial temperature range of -40°C to 85°C. It is available in a compact SOT-23-6 package, suitable for surface mount applications where space is a constraint. The input type is single-ended, and the architecture is SAR with an internal track-and-hold circuit.

ADC101S051CIMFX/NOPB Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Canonical Name: ADC101S051CIMFX/NOPB 10-Bit 500kSPS SAR Analog-to-Digital Converter
Subcategory: SAR ADC

ADC101S051CIMFX/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ADC101S051CIMFX/NOPB Estimated Pricing

Qty Low High
1+ $1.33 $1.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADC101S051CIMFX/NOPB Features

  • 10-bit resolution analog-to-digital converter.
  • Maximum sample rate of 500kSPS.
  • SPI and DSP compatible serial interface.
  • Wide supply voltage range of 2.7V to 5.25V.
  • Operates from -40°C to 85°C.

ADC101S051CIMFX/NOPB Applications

  • Suitable for battery-powered data acquisition systems.
  • Ideal for portable instrumentation and sensor interfaces.
  • Used in industrial process control and monitoring.
  • Applicable in automotive sensor modules (temperature range -40°C to 85°C).
  • Can be used in medical devices requiring low power.

ADC101S051CIMFX/NOPB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ADC101S051CIMFX/NOPB?

The ADC101S051CIMFX/NOPB operates from 2.7V to 5.25V.

What package does the ADC101S051CIMFX/NOPB come in?

It comes in a SOT-23-6 surface-mount package.

What is the operating temperature range of the ADC101S051CIMFX/NOPB?

The operating temperature range is -40°C to 85°C.

Is the ADC101S051CIMFX/NOPB RoHS compliant?

According to available data, it is listed as RoHS3 Compliant, but this information is unverified.

What is the resolution of the ADC101S051CIMFX/NOPB?

The ADC has a resolution of 10 bits.

What is the maximum sample rate of the ADC101S051CIMFX/NOPB?

The maximum sample rate is 500 kSPS.

What interface does the ADC101S051CIMFX/NOPB use?

It supports SPI and DSP serial interfaces.
