| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,882 pcs
|
5882 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |

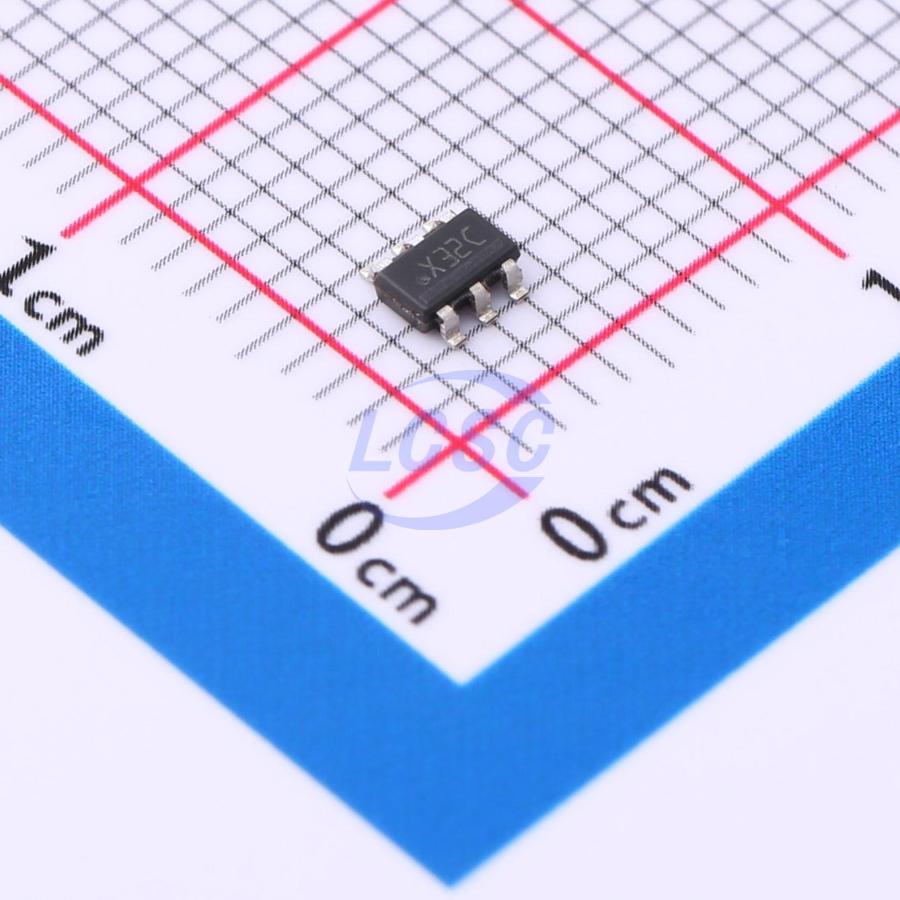

ADC101C027CIMK/NOPB is a 10-bit successive approximation register (SAR) analog-to-digital converter manufactured by Texas Instruments. It accepts a single-ended analog input and converts it to 10-bit digital data, achieving a sampling rate of 188.9 kHz. The device uses a supply-based reference and supports an I²C-compatible serial data interface for communication with microcontrollers and digital systems. A selectable address feature allows multiple devices on the same I²C bus.
With a supply voltage range of 2.7V to 5.5V, this ADC is suited for low-power and portable instrumentation. The S/H-ADC configuration with a 1:1 ratio integrates a sample-and-hold front-end, ensuring stable conversion of analog signals. The operating temperature range of -40°C to 105°C enables use in both industrial and automotive environments.
The device is offered in a thin SOT-23-6 (TSOT-23-6) surface-mount package, specifically designated as SOT-23-THIN by the supplier. This compact footprint makes it suitable for space-constrained PCB designs. Its single-input architecture and I²C interface simplify signal-chain design in data acquisition and monitoring applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.58 | $1.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7V to 5.5V.
The device is offered in a SOT-23-6 Thin (TSOT-23-6) surface-mount package, with supplier package designation SOT-23-THIN.
The operating temperature range is -40°C to 105°C.
RoHS3 Compliant according to existing data.
The resolution is 10 bits.
The sampling rate is 188.9 kHz.
The data interface is I²C.
