| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,254 pcs
|
2254 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 | |
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| SVHC Present | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments ADC08D1500CIYB/NOPB is a high-performance, low-power, dual 8-bit analog-to-digital converter (ADC) that digitizes signals at sample rates up to 1.5 GSPS. It consumes a typical 1.8 Watts at 1.5 GSPS from a single 1.9 Volt supply and is ensured to have no missing codes over the full operating temperature range of -40°C to +85°C.
This ADC features a unique folding and interpolating architecture, a fully differential comparator design, and an innovative internal sample-and-hold amplifier. It offers a very flat response of dynamic parameters beyond Nyquist, producing a high 7.25 ENOB with a 748 MHz input signal at a 1.5 GHz sample rate. The output format is binary, and the LVDS digital outputs are compatible with IEEE 1596.3-1996 standards, with an adjustable common mode voltage between 0.8V and 1.2V.

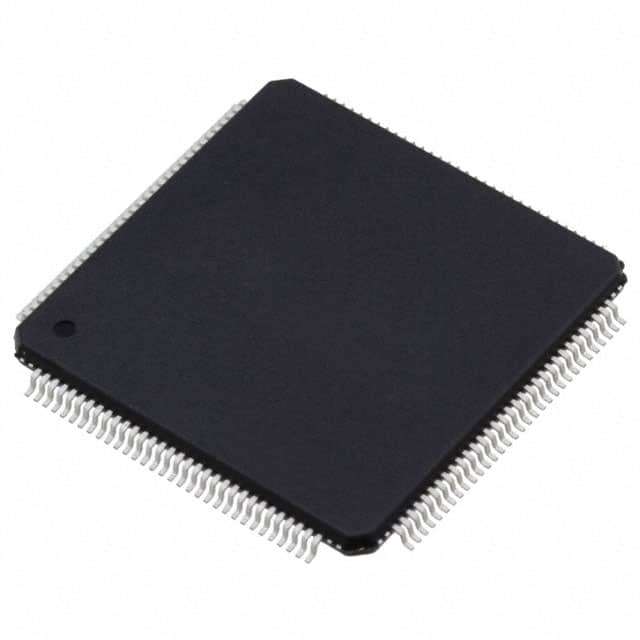

Each converter includes a 1:2 demultiplexer that feeds two LVDS buses, reducing the output data rate on each bus to half the sample rate. The two converters can be interleaved for a combined 3 GSPS sample rate. The device is available in a 128-lead, thermally enhanced exposed pad HLQFP package and is designed for surface mount applications.
Key applications include direct RF down conversion, digital oscilloscopes, satellite set-top boxes, communications systems, and test instrumentation.
The ADC08D1500CIYB/NOPB has a resolution of 8 bits.
The maximum conversion rate is 1.5 GSPS.
The typical operating voltage is 1.9V.
The operating temperature range is -40°C to 85°C.
The ADC08D1500CIYB/NOPB is supplied in a 128-LQFP Exposed Pad package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
