| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
474 pcs
|
474 pcs | On Request | 1 | On Request | On Request | 82+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Power Consumption | |
| Resolution | |
| Voltage |

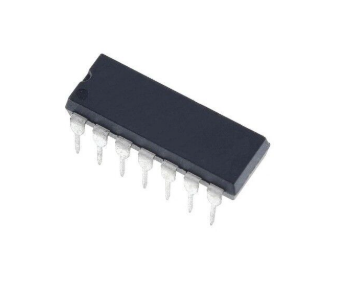

The ADC0833CCN is an 8-bit successive approximation Analog-to-Digital Converter (ADC) featuring a serial I/O and a configurable 4-channel input multiplexer. It is designed to comply with the NSC MICROWIRE serial data exchange standard, facilitating easy interface with processors and shift registers.
Key electrical specifications include an 8-bit resolution and a total unadjusted error of ±1 LSB. It operates from a single 5V DC supply, consuming low power of 23 mW. The conversion time is 32µs. The device supports a 0V to 5V input range with a single 5V power supply and can work with a 2.5V voltage reference. The 4-channel multiplexer is software-configurable for single-ended or differential inputs.
Packaged in a 14-pin DIP, the ADC0833CCN is suitable for through-hole mounting. Its differential analog voltage inputs enhance common-mode rejection, and the voltage reference input can be adjusted for encoding smaller analog voltage spans to the full 8 bits of resolution.
Applications include interfacing with microprocessors, remote operation via serial digital data links, and standalone operation. It is TTL/CMOS input/output compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADC0833CCN has 8-bit resolution.
The ADC0833CCN operates from a single 5V supply.
The conversion time is 32 µs.
The ADC0833CCN has 4 input channels.
The operating temperature range is -40°C to +85°C.
The ADC0833CCN is available in a DIP-14 package.
