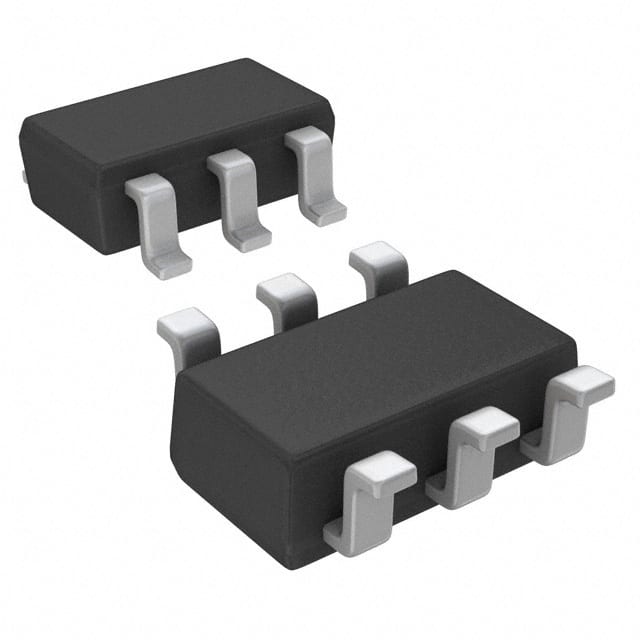

ADC081C021CIMK/NOPB 8-bit SAR ADC with I2C interface, 188.9 ksps sampling rate, single-ended input, supply voltage 2.7V to 5.5V, in TSOT-23-6 package.
Mfr Part #:

ADC081C021CIMK/NOPB

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
8-bit SAR ADC with I2C interface, 188.9 ksps sampling rate, single-ended input, supply voltage 2.7V to 5.5V, in TSOT-23-6 package.
✓ Total Stock: 56,385 pcs
$ Price Range: $0.55

ADC081C021CIMK/NOPB Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,702 pcs
On Request
4702 pcs On Request 1 On Request On Request 2111+5 On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
523 pcs
On Request
523 pcs On Request 1 On Request On Request 1519+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADC081C021CIMK/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
INL
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Ratio
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Voltage
View Similar Products (0)

ADC081C021CIMK/NOPB Description

Short technical summary and product information.

The ADC081C021CIMK/NOPB is an 8-bit successive approximation register (SAR) analog-to-digital converter from Texas Instruments. It features a maximum sampling rate of 188.9 ksps and a single-ended input channel. The device communicates via an I2C-compatible interface supporting standard, fast, and high-speed modes (up to 3.4 MHz).



Key electrical specifications include a supply voltage range of 2.7V to 5.5V for both analog and digital supplies, typical power consumption of 0.26 mW at 22 ksps (3V supply) and 0.78 mW (5V supply). The converter offers excellent linearity with maximum INL and DNL of ±0.2 LSB, and a typical SNR of 49.8 dB. Conversion time is 1 µs typical.



The ADC081C021 is available in a compact TSOT-23-6 surface-mount package, suitable for space-constrained designs. It includes an out-of-range alert function and automatic power-down mode to reduce power consumption when not converting. Operating temperature range is -40°C to 105°C.

ADC081C021CIMK/NOPB Quick Information

Product Type: Analog to Digital Converter (ADC)
Canonical Name: ADC081C021CIMK/NOPB
Subcategory: Precision ADCs

ADC081C021CIMK/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADC081C021CIMK/NOPB Estimated Pricing

Qty Low High
1+ $0.55 $0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADC081C021CIMK/NOPB Features

  • 8-bit resolution with no missing codes.
  • Maximum sampling rate of 188.9 ksps.
  • I2C interface with up to 3.4 MHz speed.
  • Low power consumption: 0.26 mW typical at 22 ksps.
  • Compact TSOT-23-6 surface-mount package.

ADC081C021CIMK/NOPB Applications

  • Ideal for portable battery-powered instrumentation.
  • Suitable for industrial sensor monitoring systems.
  • Used in data acquisition modules with I2C bus.
  • Perfect for space-constrained embedded designs.

ADC081C021CIMK/NOPB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ADC081C021CIMK/NOPB?

The analog and digital supply voltage range is 2.7V to 5.5V.

What package is the ADC081C021CIMK/NOPB available in?

It is available in a TSOT-23-6 surface-mount package (SOT-23-6 Thin).

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Is the ADC081C021CIMK/NOPB RoHS compliant?

RoHS status is listed as RoHS3 compliant but is unverified (low confidence).

What is the maximum sampling rate of this ADC?

The maximum sampling rate is 188.9 ksps.

What interface does the ADC081C021CIMK/NOPB use?

It uses an I2C-compatible 2-wire interface supporting standard, fast, and high-speed modes.

What is the resolution of this ADC?

The resolution is 8 bits.
