ADAU7002ACBZ-R7 The ADAU7002ACBZ-R7 is a stereo PDM-to-I2S or TDM conversion IC from Analog Devices. It converts a stereo PDM bit stream into PCM audio data with support for sample rates from 4 kHz to 96 kHz.
Mfr Part #:

ADAU7002ACBZ-R7

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADAU7002ACBZ-R7 is a stereo PDM-to-I2S or TDM conversion IC from Analog Devices. It converts a stereo PDM bit stream into PCM audio data with support for sample rates from 4 kHz to 96 kHz.
✓ Total Stock: 28,837 pcs

ADAU7002ACBZ-R7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
28,817 pcs
On Request
28817 pcs On Request 1 On Request On Request 2204+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADAU7002ACBZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Mounting Type
Number of Channels
Number of Pins
Operating Temperature
Specifications
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

ADAU7002ACBZ-R7 Description

Short technical summary and product information.

The ADAU7002 is a stereo PDM-to-I2S or TDM conversion IC that converts a stereo pulse density modulation (PDM) bit stream into pulse code modulation (PCM) audio data. The PCM audio data is output on a serial audio interface port in either I2S or TDM format. The device features a 64× decimation ratio and supports PDM clock rates from 64× to 512× the output sample rate. It operates with an I/O supply voltage ranging from 1.62 V to 3.6 V and offers automatic power-down with BCLK removal.

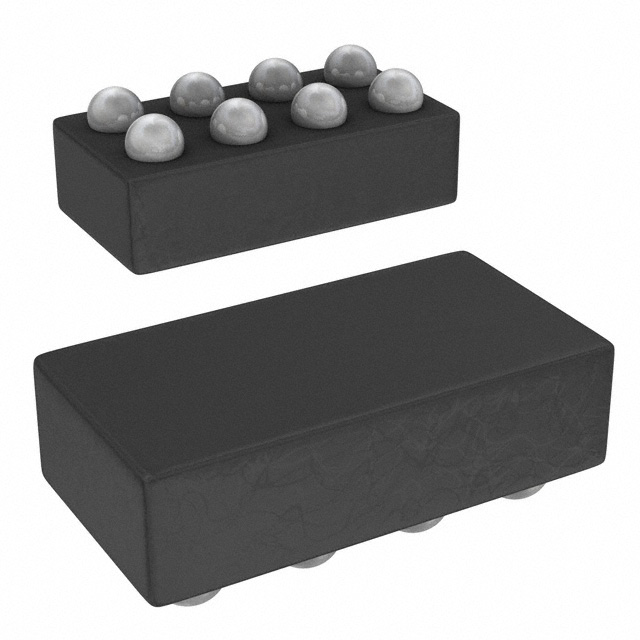

Output sample rate is adjustable from 4 kHz to 96 kHz. Typical operating current is 0.67 mA at 48 kHz and 1.8 V IOVDD, with shutdown current less than 1 μA. The ADAU7002 is specified over the industrial temperature range of -40°C to +85°C. It is available in a halide-free, 8-ball, 1.56 mm × 0.76 mm, 0.4 mm pitch wafer level chip scale package (WLCSP) for space-constrained designs.

ADAU7002ACBZ-R7 Quick Information

Product Type: Audio Converter IC
Canonical Name: Stereo PDM-to-I2S or TDM Conversion IC
Subcategory: Sample Rate Converter

ADAU7002ACBZ-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADAU7002ACBZ-R7 Features

  • Stereo PDM-to-I2S or TDM conversion.
  • 64x decimation ratio from PDM to PCM.
  • I/O supply voltage range 1.62V to 3.6V.
  • Low operating current: 0.67 mA typical.
  • 8-ball WLCSP package, 1.56mm x 0.76mm.

ADAU7002ACBZ-R7 Applications

  • Ideal for mobile computing audio processing.
  • Used in portable electronics with PDM microphones.
  • Suitable for consumer audio devices.
  • Enables digital audio interface conversion.
  • Applied in space-constrained designs.

ADAU7002ACBZ-R7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ADAU7002ACBZ-R7?

The I/O supply voltage range is 1.62V to 3.6V.

What is the operating temperature range?

-40°C to +85°C (TA).

What package is the ADAU7002ACBZ-R7 available in?

8-ball WLCSP package with dimensions 1.56 mm × 0.76 mm, 0.4 mm pitch.

Is the ADAU7002ACBZ-R7 RoHS compliant?

The component is marked as RoHS3 Compliant, but this is unverified.

What is the output sample rate range?

4 kHz to 96 kHz.

What interfaces does the ADAU7002 support?

I2S or TDM output interface.

What is the typical operating current?

0.67 mA at 48 kHz and 1.8V IOVDD.
