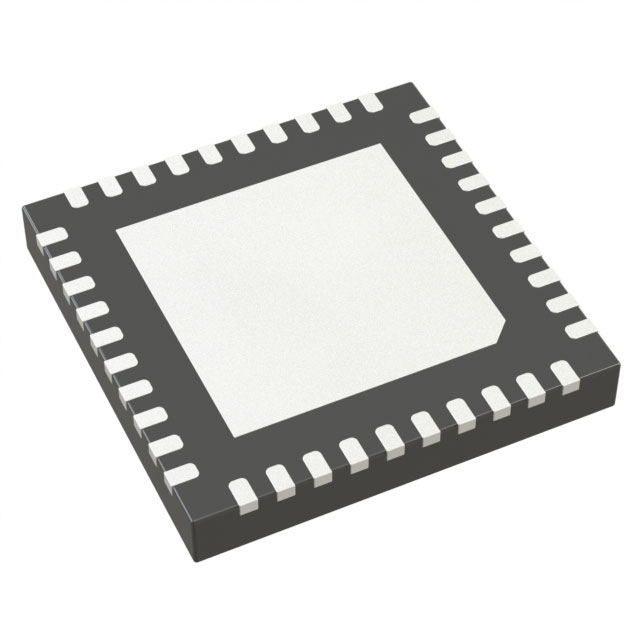

ADAU1977WBCPZ The Analog Devices ADAU1977WBCPZ is a high-performance quad analog-to-digital converter (ADC) with integrated diagnostics. It offers 24-bit resolution and supports sample rates up to 192 kHz.
Mfr Part #:

ADAU1977WBCPZ

Available from 2 distributors
Mfr Name: ADI Electronics
ADI Electronics
The Analog Devices ADAU1977WBCPZ is a high-performance quad analog-to-digital converter (ADC) with integrated diagnostics. It offers 24-bit resolution and supports sample rates up to 192 kHz.
✓ Total Stock: 1,125 pcs
$ Price Range: $0.30

ADAU1977WBCPZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
980 pcs
On Request
980 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
145 pcs
On Request
145 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADAU1977WBCPZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Input Voltage
Medical Grade
Military Grade
Mounting Type
Resolution
Storage Temperature
Supply Voltage
Tape & Reel
View Similar Products (0)

ADAU1977WBCPZ Description

Short technical summary and product information.

The ADAU1977WBCPZ from Analog Devices Inc. is a quad, 24-bit analog-to-digital converter (ADC) designed for high-fidelity audio applications. It features direct-coupled differential inputs capable of handling up to 10 Vrms and provides comprehensive diagnostic capabilities for input lines and microphone bias.



Key electrical specifications include a dynamic range of 109 dB and a THD+N of -95 dB. The device supports selectable digital high-pass filters and sample rates ranging from 8 kHz to 192 kHz. It operates from a single 3.3V supply and includes programmable microphone bias from 5V to 9V with fault detection.



This ADC utilizes a multibit sigma-delta architecture with a continuous-time front end for low EMI design. It is suitable for automotive audio systems and active noise cancellation applications. The ADAU1977WBCPZ is supplied in a 40-lead LFCSP package, designed for surface mounting.



Control is managed via an I2C/SPI interface, and the device supports master and slave operation modes, including TDM, I2S, left justified, and right justified data formats.

ADAU1977WBCPZ Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Series: ADAU1977
Canonical Name: ADAU1977 Quad ADC with Diagnostics
Subcategory: Audio ADC

ADAU1977WBCPZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

ADAU1977WBCPZ Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADAU1977WBCPZ Features

  • Four 24-bit ADCs with diagnostics
  • 109 dB ADC dynamic range
  • Up to 192 kHz sample rate
  • Programmable microphone bias (5V-9V)
  • 40-lead LFCSP package

ADAU1977WBCPZ Applications

  • High-fidelity audio recording systems
  • Precision measurement equipment
  • Data acquisition in industrial environments
  • Audio processing in professional equipment

ADAU1977WBCPZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the dynamic range of the ADAU1977WBCPZ?

The ADAU1977WBCPZ has a typical dynamic range of 109 dB.

What is the maximum sample rate supported by the ADAU1977WBCPZ?

The maximum sample rate supported is 192 kHz.

What is the input voltage range for the ADAU1977WBCPZ?

It can handle input voltages up to 10 Vrms.

What is the operating temperature range of the ADAU1977WBCPZ?

The operating temperature range is from -40°C to 105°C.

Is the ADAU1977WBCPZ RoHS compliant?

Yes, it is RoHS3 compliant.

What package type is used for the ADAU1977WBCPZ?

It is packaged in a 40-lead LFCSP with exposed pad.
